MAIN FEATURES:
The Redline cylinders are manufactured using corrosion-resistant materials
Suitable for smoke and heat exhaust systems according to the UNI EN 12101-2 standard.

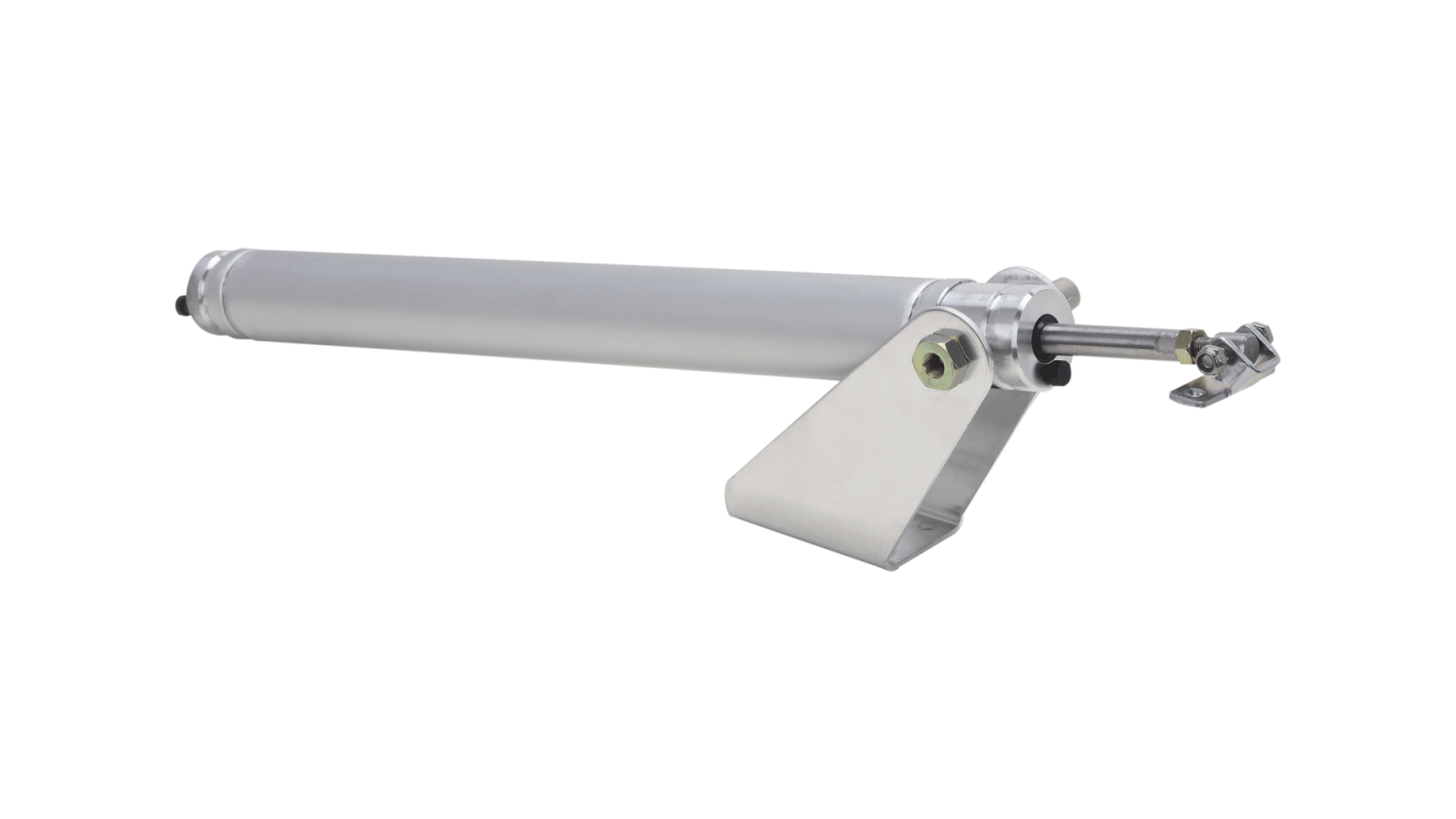

Double action cylinders, they can open and close.

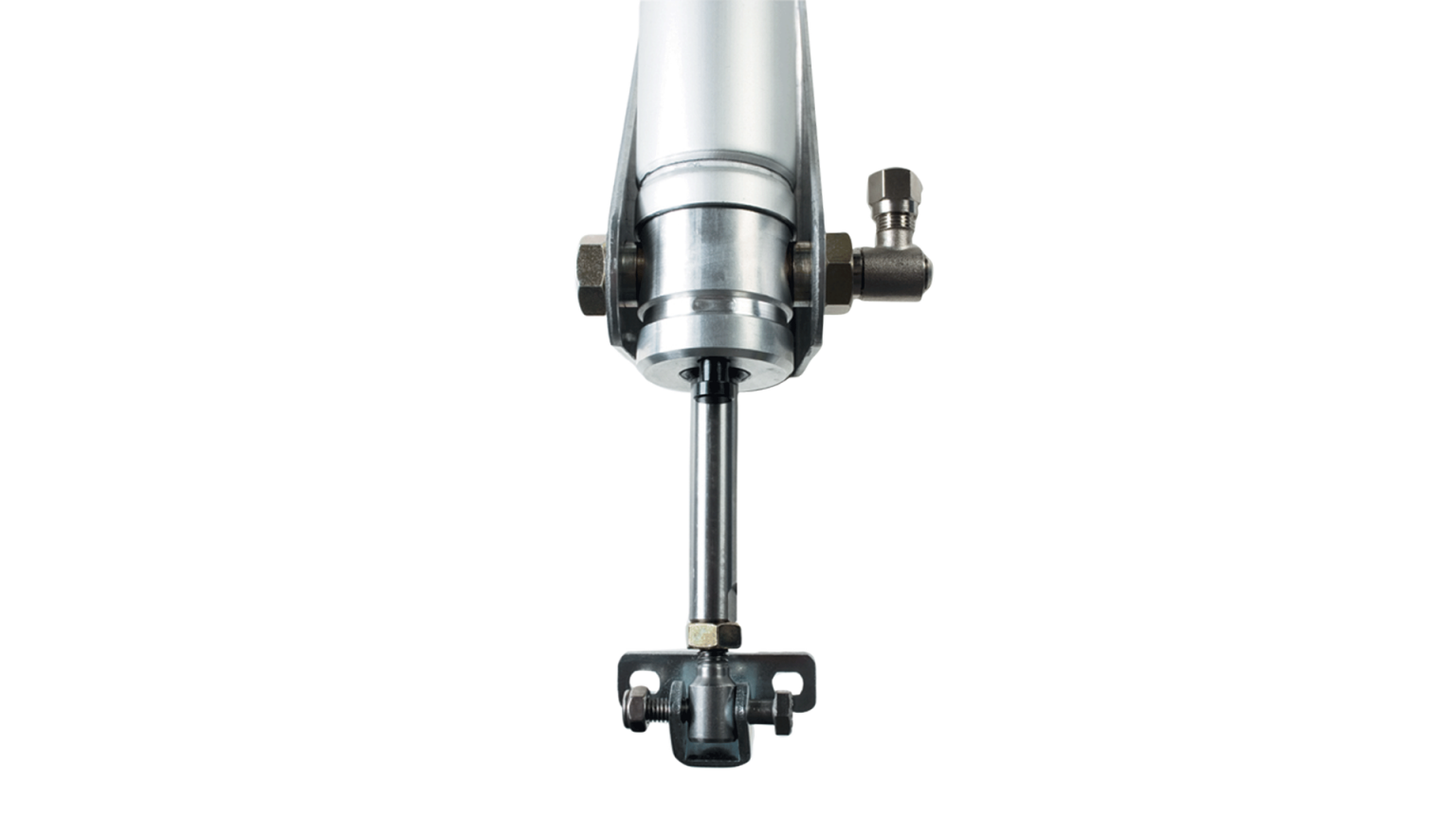

Provided with a mechanical locking device in the end stroke positions. It can be pneumatically or manually (pressing the corresponding end button) unlocked.
On request (min. 50 pieces):
- any intermediate stroke
- rear feeding
- cylinders without locking device

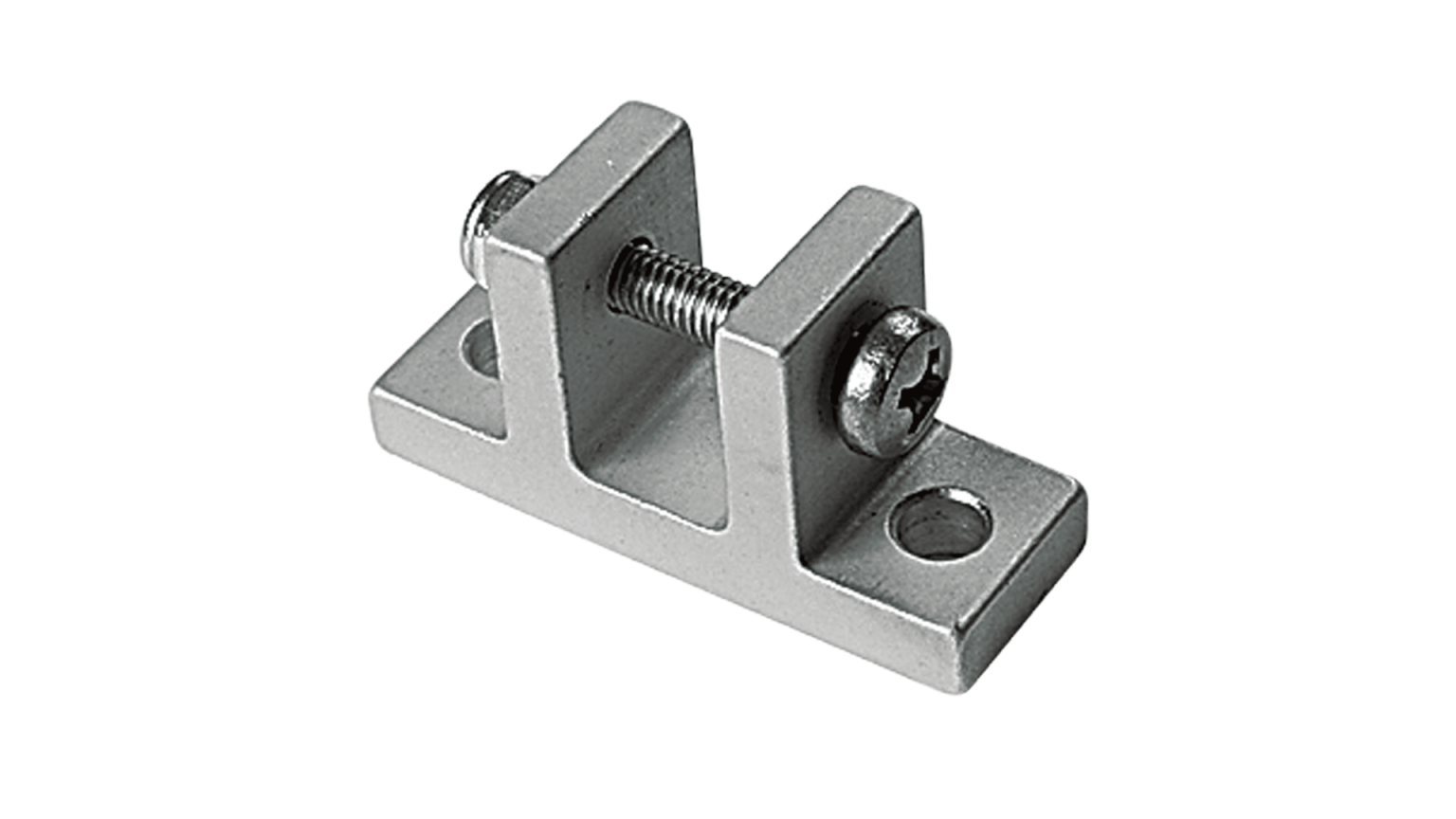

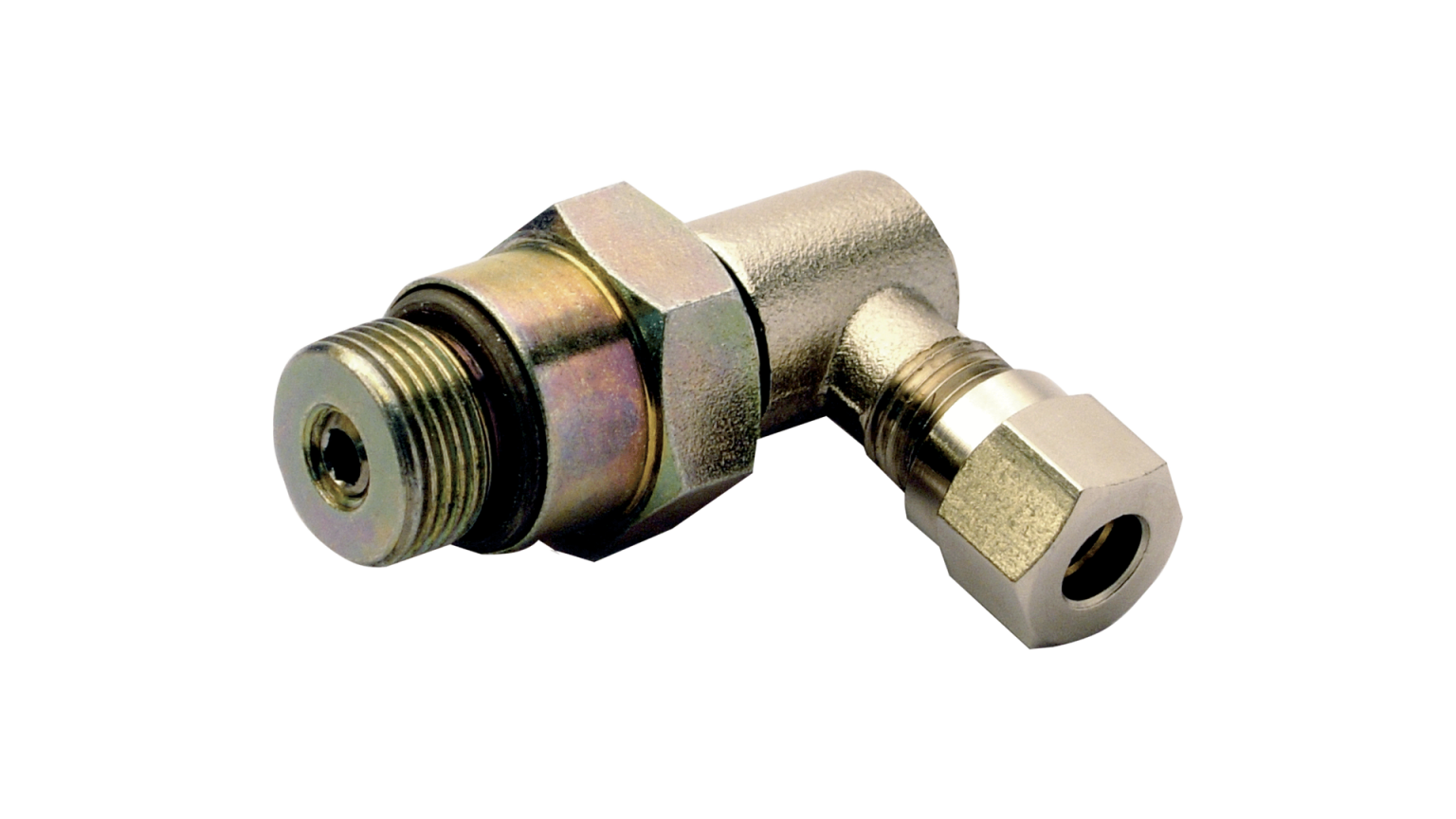

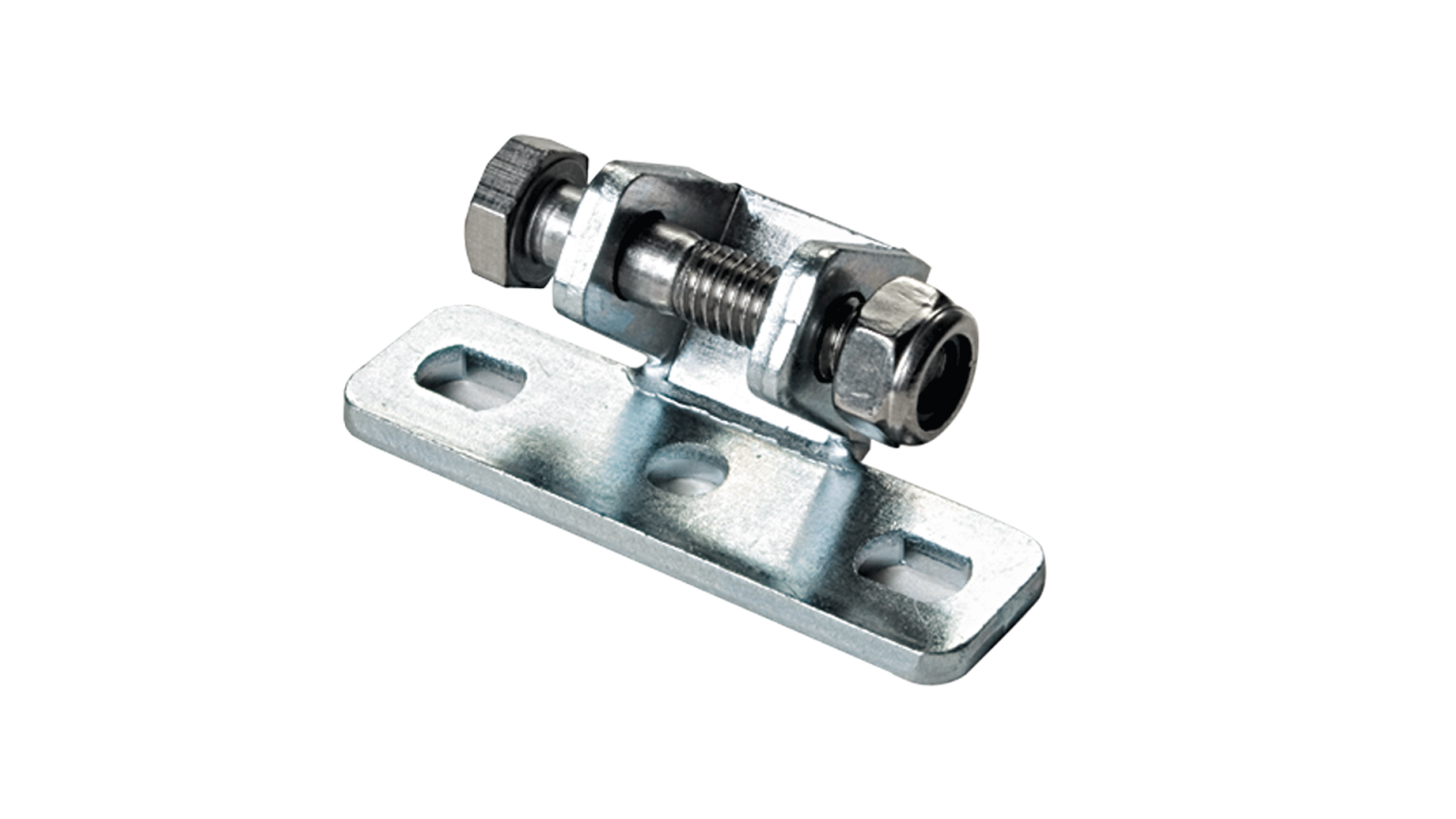

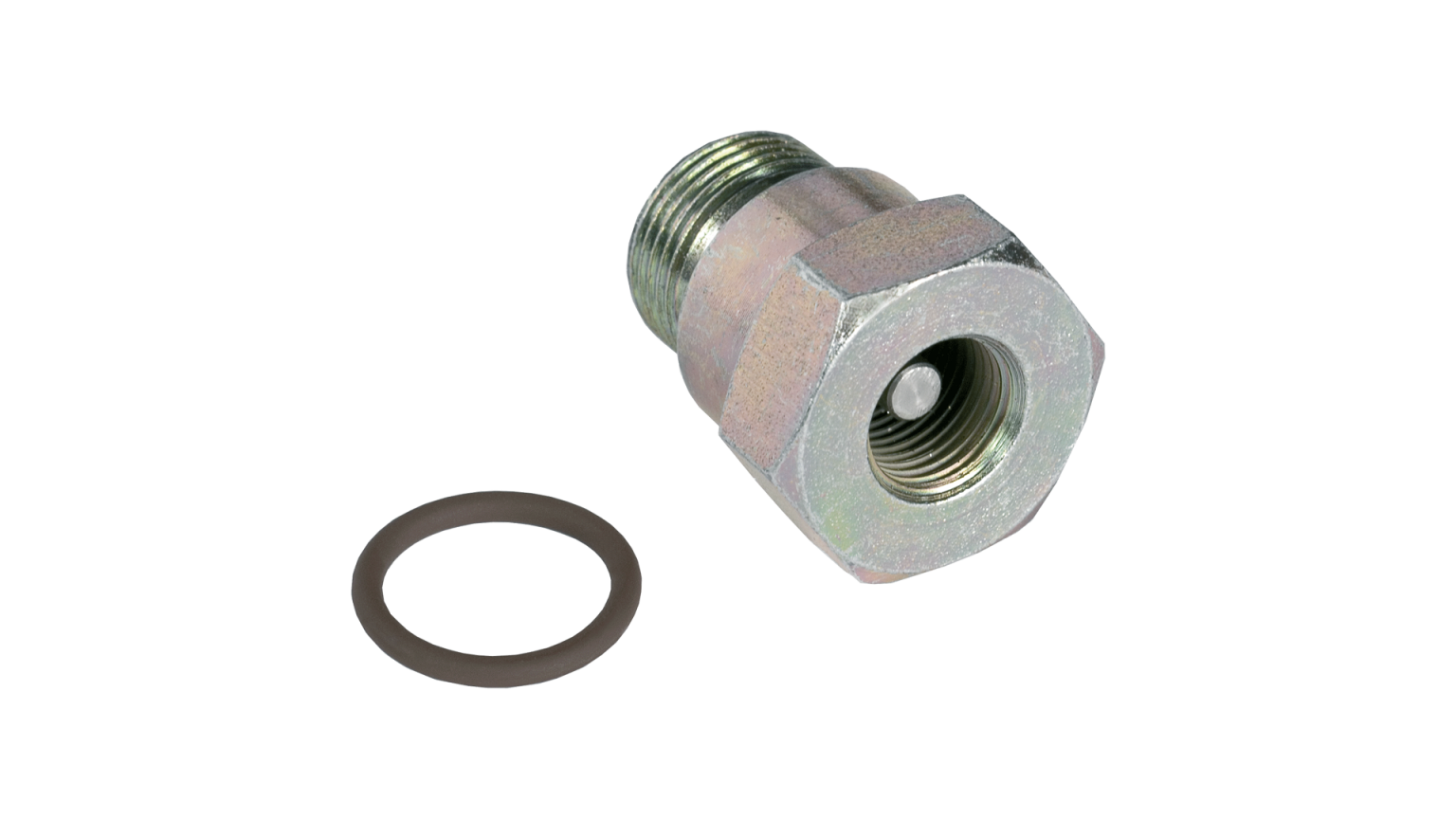

Fixing brackets, accessories and connectors must be ordered separately.

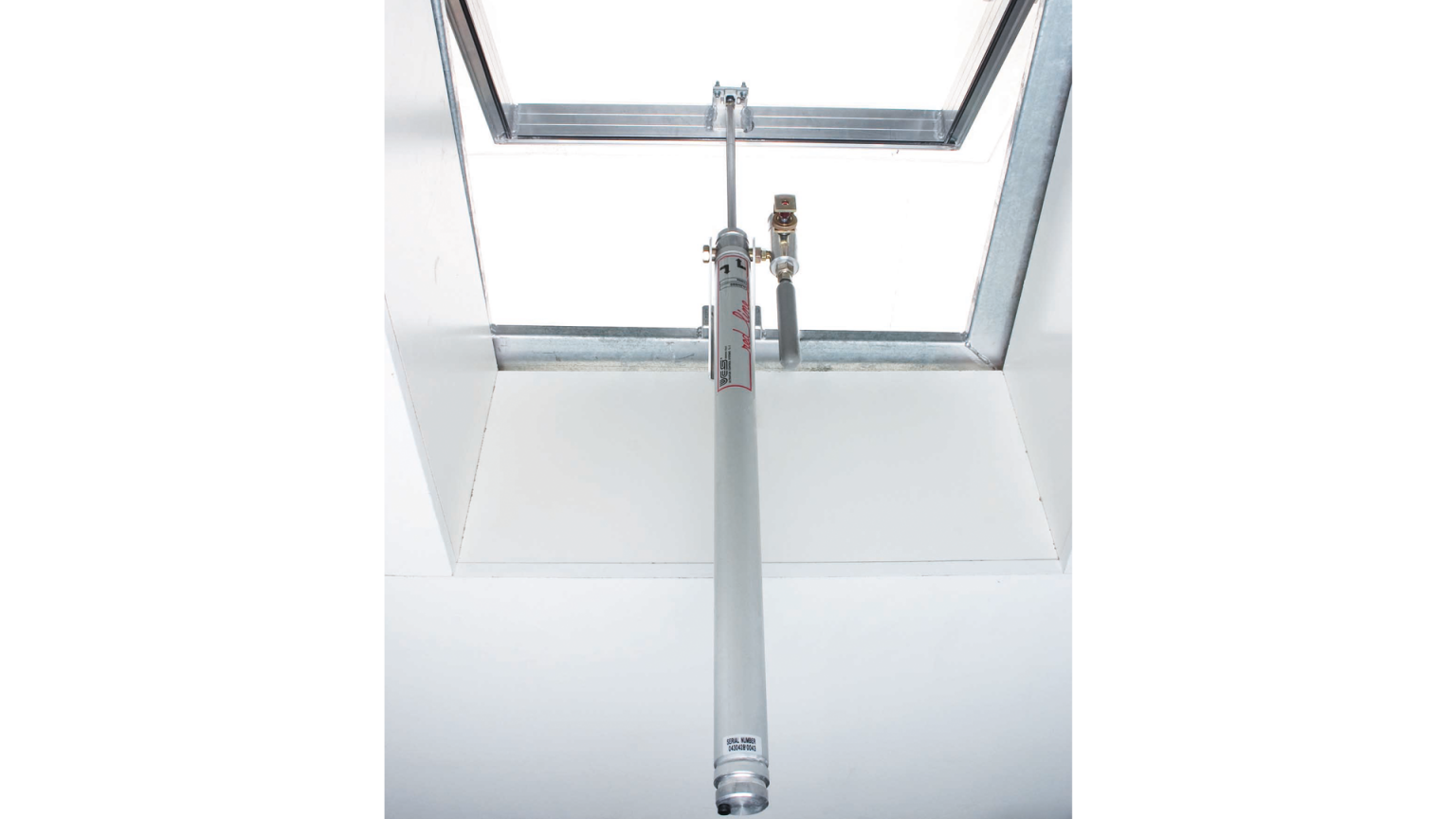

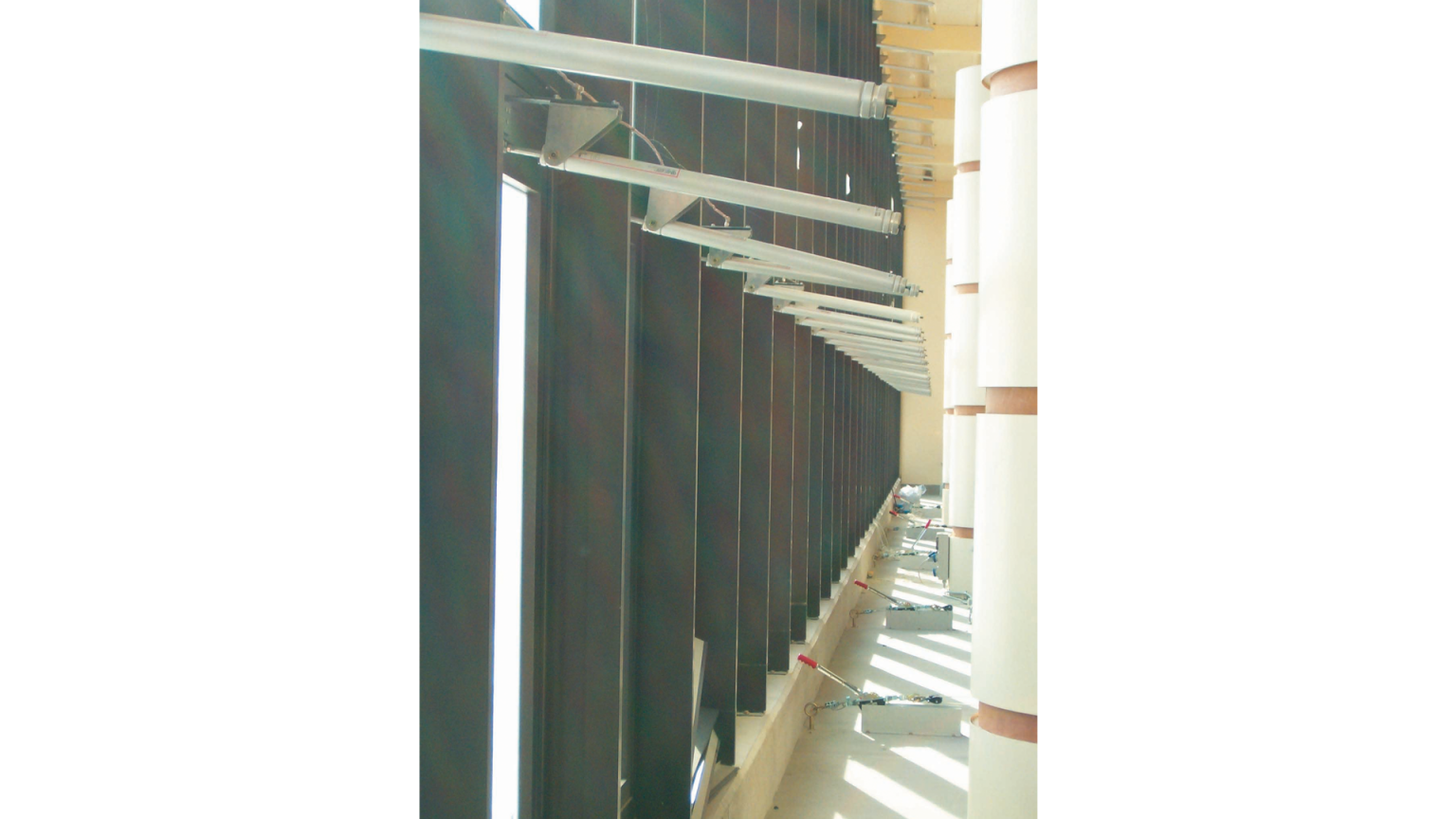

The Redline cylinders can be used for ventilation where a compressed air system is available.
The installation of two cylinders on the same vent requires the version without locking device (stroke 500mm part No.40344H – stroke 700mm part No 40610F).
| Label | Value |
|---|---|
| BORE | 35 mm |
| ROD | Diam. 12mm |
| ROD MATERIAL | STAINLESS STEEL |
| TEMP. RANGE | -30°C / +120C° |
| FEED | FRONT |
| THRUST | 1.900N at 20 bar |
| LOCK RESISTANCE | 3.000N up to 300°C |
| Model | Part Number | Description |
|---|---|---|
| Pneumatic Cylinder | 40083L | Ø35 mm - 300 mm |
| Pneumatic Cylinder | 40085N | Ø35 mm - 500 mm |
| Pneumatic Cylinder | 40087P | Ø35 mm - 700 mm |
| Pneumatic Cylinder | 40090K | Ø35 mm - 1000 mm |
| Pneumatic Cylinder | 41096C | Ø50 mm - 480 mm - without locking |
