VEGA
WINDOW ACTUATORS

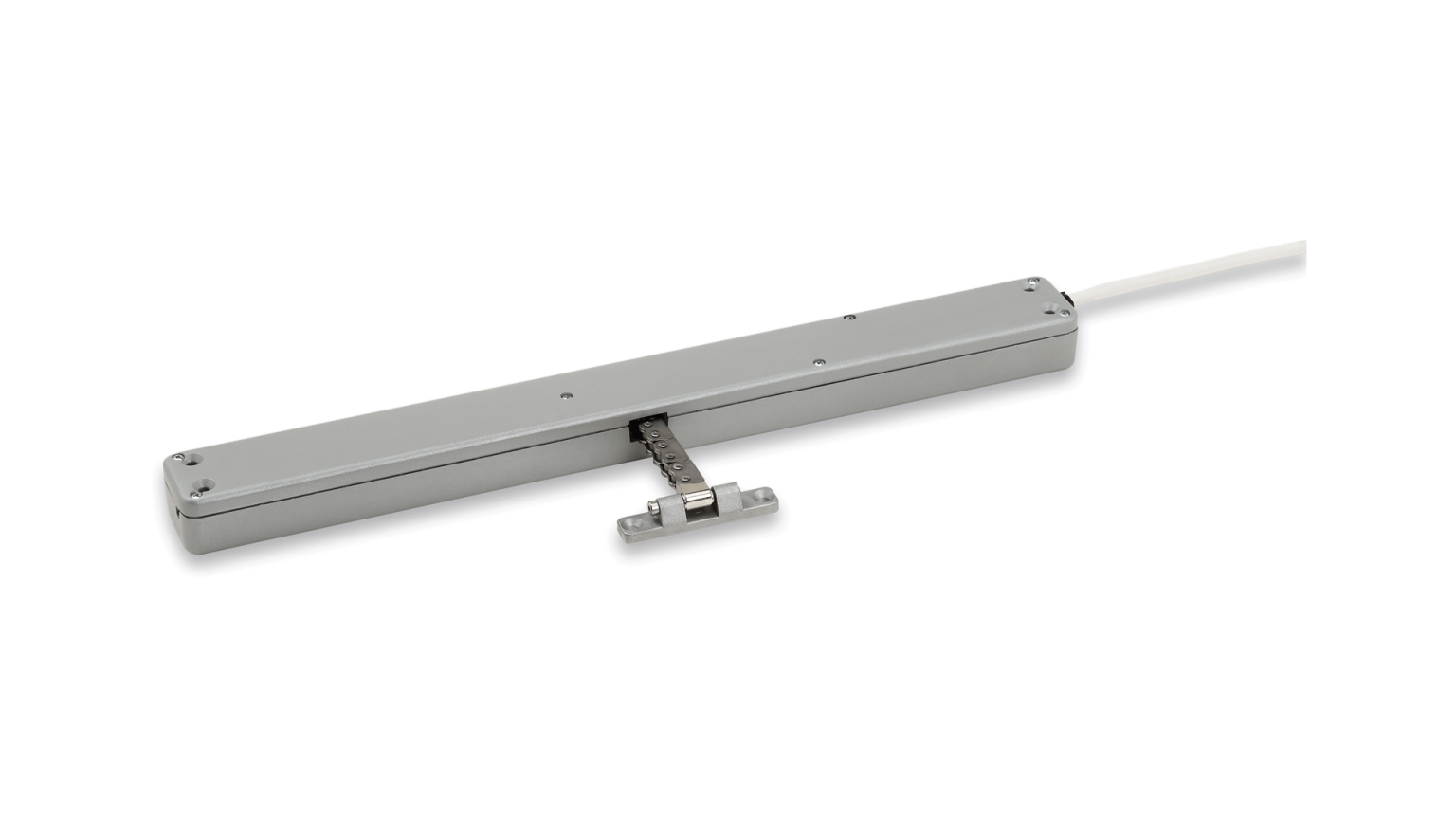

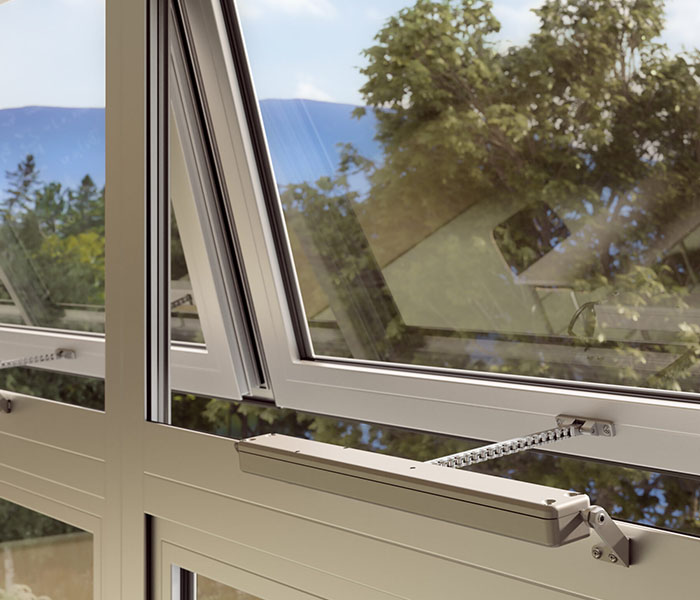

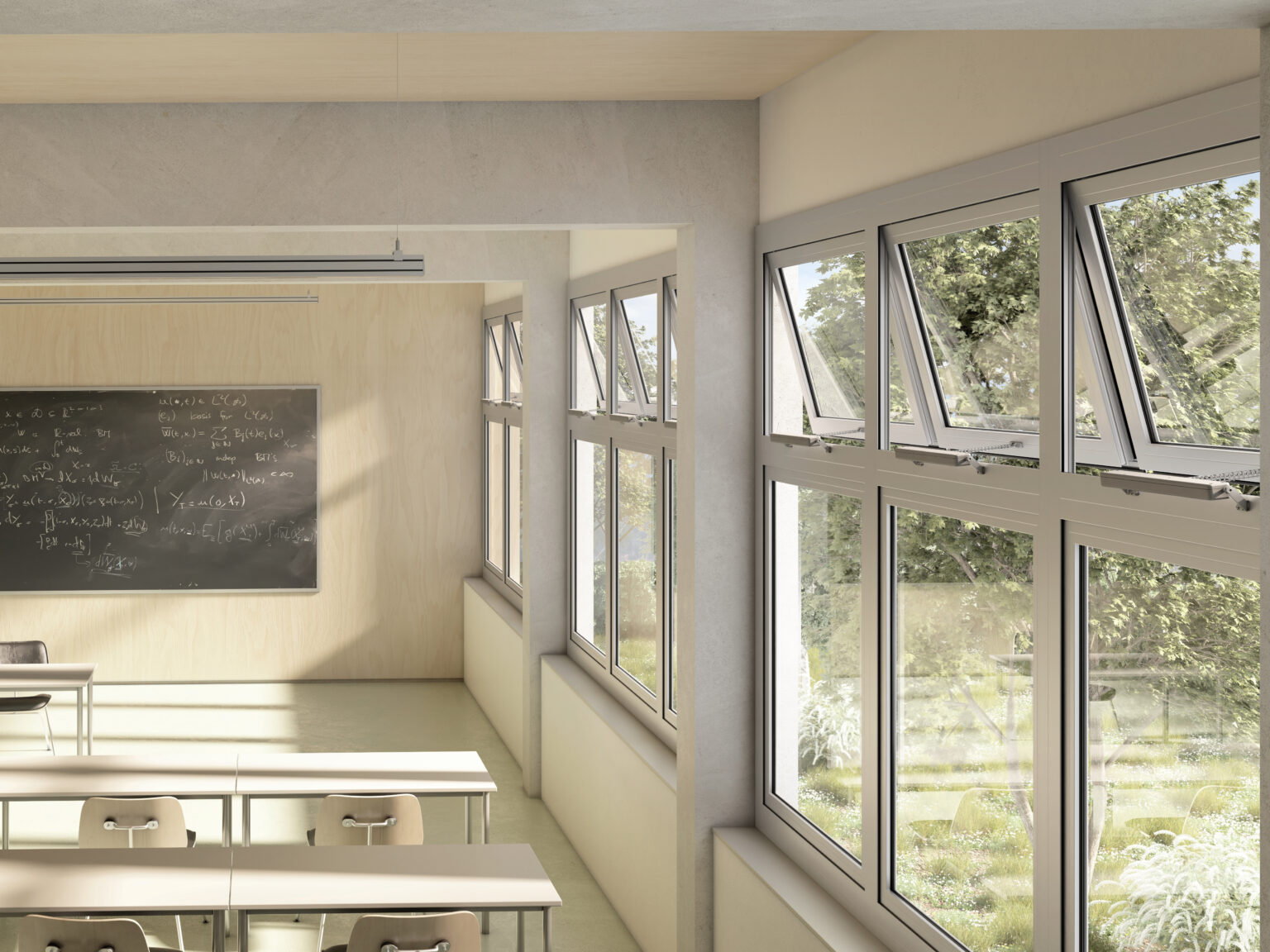

High performance in small die-cast aluminum casing (45 x 32 mm), powder painted. Chain in double stainless steel links. Chain exit in central position. Quick and easy installation: the manual closing position regulation is not required. The stop in closing position is regulated by an electronic limit switch control. Electronic stop in the intermediate positions in case of overload.
Select your version
MAIN FEATURES (all versions)
High performance in small die-cast aluminum casing (45 x 32 mm), powder painted. Chain in double stainless steel links. Chain exit in central position.
Quick and easy installation: the manual closing position regulation is not required. The stop in closing position is regulated by an electronic limit switch control.
Electronic stop in the intermediate positions in case of overload.
Technical details of VEGA DC
WINDOW ACTUATORS VEGA DC is provided with 1,5 m cable (no synchronization, feedback signal and speed selection). Suitable for combined installation with the additional locking device E-LOCK or PLUSULTRA (see related data sheet).
OTHER VERSIONS OF WINDOW ACTUATORS UPON REQUEST:
- Versions UL and UR for USA and Canada.
- RAL colour and chain lenght can be customised.
Technical details of VEGA DC SYNCHRO
VEGA DC SYNCHRO versions are equipped with an integrated speed synchronization control board for the installation of more than one actuator on the same vent, avoiding any external control panel. Suitable for combined installation with the additional locking device E-LOCK (see related data sheet).
WINDOW ACTUATORS DC version: max 4 Vega DC Synchro + E-LOCK.
OTHER VERSIONS OF WINDOW ACTUATORS UPON REQUEST:
- Versions UL and UR for USA and Canada.
- RAL colour and chain lenght can be customised.
Technical details of VEGA DC F-SIGNAL
WINDOW ACTUATOR VEGA DC F-SIGNAL versions provide free potential opening and closing feedback signal (maintained contact), activated by the current limit. Suitable for combined installation with the additional locking device E-LOCK or PLUSULTRA (see related data sheet).
OTHER VERSION OF WINDOW ACTUATORS UPON REQUEST:
- Versions UL and UR for USA and Canada.
- RAL colour and chain lenght can be customised.
Technical details of VEGA DC SYNCHRO F-SIGNAL
VEGA DC SYNCHRO F-SIGNAL versions are equipped with an integrated speed synchronization control board for the installation of more than one actuator on the same vent, avoiding any external control panel.
WINDOW ACTUATOR VEGA DC SYNCHRO F-SIGNAL versions provide free potential opening and closing feedback signal (maintained contact), activated by the current limit.
Suitable for combined installation with the additional locking device E-LOCK (see related data sheet).
DC version: max 4 Vega DC Synchro + E-LOCK.
OTHER VERSIONS OF WINDOW ACTUATORS UPON REQUEST:
- Versions UL and UR for USA and Canada.
- RAL colour and chain lenght can be customised.
Technical details of VEGA DC BMSline
VEGA DC BMSline new generation of compact chain actuators fully programmable in all functions, providing two-way communication with computer system. Integrating window automation with the BMS Building Management System will enable interaction with other systems in building (HVAC, lighting…) granting considerable energy saving, improving comfort and wellbeing, becoming health and productivity. At the same time the building’s safety is assured by smoke ventilation in emergencies.
BMSline SPECIAL FEATURES:
Compatible with all existing building management systems.
Continual, totally controlled window with 100% real-time feedback. Not just an ON/OFF operation (open/close)
Addressable actuators in order to control the environment of each room in a building.
No need for external modules/control panels: the actuator has built-in intelligence
Window controlled locally by a standard wall switch, even with a centralized Building Management System.
Smoke Ventilation Control Panels with back-up batteries can be directly and safely connected.
BMSline PROGRAMMABLE PARAMETERS:
Stroke
Percentage of opening and closing action.
Speed, in opening and closing action.
Force, in opening and closing action.
Real close position of the window.
Closing position tolerance.
Soft stop length and speed.
BMSline CHAIN ACTUATORS FEEDBACK:
Full opening or closing
Percentage of opening and position of the chain.
Current setting of parameters and scenarios
Location in the building and address in the network.
Statistics
Command state
Eventual Failures
BMSline SELECTABLE SCENARIOS:
Reduction of entrapment risk.
Speed synchronization for multiple actuators on the same window.
“Soft” closing of the window.
Quiet operation in case of ventilation and full speed and force for Smoke and Heat Extraction.
Local control of the window even with centralized management.
Technical details of VEGA AC
WINDOW ACTUATOR VEGA AC (no synchronization, feedback signal and speed selection).
OTHER VERSIONS OF WINDOW ACTUATORS UPON REQUEST:
- Versions UL and UR for USA and Canada.
- RAL colour and chain lenght can be customised.
VEGA DC
| Label | Value |
|---|---|
| Voltage Supply | 24 Vdc +/-10% |
| Current Absorbtion (Max load) | 0,7 A |
| Operation | Polarity inversion |
| Max Force (see stroke/force diagram) | 300 N |
| Available stroke | 300 mm |
| Speed | 9 mm/s |
| Locking Force | 2500 N |
| Duty Cycle | 50 % |
| Limit Stop | Electronic |
| Safety Stop | Electronic |
| Parallel Connection | Yes |
| Protection Class | IP 30 |
| Cable | 1,5 m - 2 wires |
VEGA DC SYNCHRO
| Label | Value |
|---|---|
| Voltage Supply | 24 Vdc +/-10% |
| Current Absorbtion (Max load) | 0,7 A |
| Operation | Polarity inversion |
| Max Force (see stroke/force diagram) | 300 N |
| Available stroke | 300 mm |
| Speed | 7 mm/s |
| Locking Force | 2500 N |
| Duty Cycle | 50 % |
| Limit Stop | Electronic |
| Safety Stop | Electronic |
| Parallel Connection | Yes |
| Protection Class | IP 30 |
| Cable | 3 m - 5 wires |
| Synchro | Yes |
VEGA DC F-SIGNAL
| Label | Value |
|---|---|
| Voltage Supply | 24 Vdc +/-10% |
| Current Absorbtion (Max load) | 0,7 A |
| Operation | Polarity inversion |
| Max Force (see stroke/force diagram) | 300 N |
| Available Stroke | 300 mm |
| Speed | 9 mm/s |
| Locking Force | 2500 N |
| Duty Cycle | 50 % |
| Limit Stop | Electronic |
| Safety Stop | Electronic |
| Parallel Connection | Yes |
| Protection Class | IP 30 |
| Cable | 1,5 m - 5 wires |
| Feedback | Yes - Free potential |
VEGA DC SYNCHRO F-SIGNAL
| Label | Value |
|---|---|
| Voltage Supply | 24 Vdc +/-10% |
| Current Absorbtion (Max load) | 0,7 A |
| Operation | Polarity inversion |
| Max Force (see stroke/force diagram) | 300 N |
| Available Stroke | 300 mm |
| Speed | 9 mm/s |
| Locking Force | 2500 N |
| Duty Cycle | 50 % |
| Limit Stop | Electronic |
| Safety Stop | Electronic |
| Parallel Connection | Yes |
| Protection Class | IP 30 |
| Cable | 2 x 3m - 5 and 3 wires |
| Synchro | Yes |
| Feedback | Yes - Free potential |
VEGA DC BMSline
| Label | Value |
|---|---|
| Voltage Supply | 24 Vdc +/-10% |
| Current Absorbtion (Max load) | 0,7 A |
| Operation | programmable |
| Max Force | progr. up to 300 N |
| Available stroke | progr. up to 300 mm |
| Speed | progr. up to 9 mm/s |
| Duty Cycle | 50 % |
| Limit Stop | Electronic |
| Safety Stop | Electronic |
| Parallel Connection | Yes |
| Synchro | Yes |
| Feedback | Yes by Modbus RTU |
| Cable | 2x 3m |
| Protection Class | IP 30 |
VEGA AC
| Label | Value |
|---|---|
| Voltage Supply | 110 Vac - 240 Vac |
| Current Absorbtion (Max load) | 0,3 A - 0,15 A |
| Operation | Three wires (OPEN, CLOSE, COM) |
| Max Force (see stroke/force diagram) | 300 N |
| Available Stroke | 300 mm |
| Speed | 7 mm/s |
| Looking Force | 2500 N |
| Duty Cycle | 50 % |
| Limit Stop | Electronic |
| Safety Stop | Electronic |
| Parallel Connection | Yes |
| Protection Class | IP 30 |
| Cable | 1,5 m - 3 wires + earth |
| Model | Part Number | Description |
|---|---|---|
| Vega DC | 40903N | Stroke: 300 mm - cable: 1,5m 2 wires - colour: grey RAL 9006 |
| Vega DC | 40904O | Stroke: 300 mm - cable: 1,5m 2 wires - colour: black RAL 9005 |
| Vega DC | 40905P | Stroke: 300 mm - cable: 1,5m 2 wires - colour: white RAL 9010 |
| Model | Part Number | Description |
|---|---|---|
| Vega DC Synchro | 41122C | Stroke: 300 mm - cable: 3m 5 wires - colour: grey RAL 9006 |
| Vega DC Synchro | 41123D | Stroke: 300 mm - cable: 3m 5 wires - colour: black RAL 9005 |
| Vega DC Synchro | 41124E | Stroke: 300 mm - cable: 3m 5 wires - colour: white RAL 9010 |
| Model | Part Number | Description |
|---|---|---|
| Vega DC F-Signal | 41304W | Stroke: 300 mm - cable: 1,5 m 5 wires - colour: grey RAL 9006 |
| Vega DC F-Signal | 41305X | Stroke: 300 mm - cable: 1,5 m 5 wires - colour: black RAL 9005 |
| Vega DC F-Signal | 41306Y | Stroke: 300 mm - cable: 1,5 m 5 wires - colour: white RAL 9010 |
| Model | Part Number | Description |
|---|---|---|
| Vega DC Synchro F-Signal | 41307Z | Stroke: 300 mm - cable: 2 x 3m 5 and 3 wires - colour: grey RAL 9006 |
| Vega DC Synchro F-Signal | 41308A | Stroke: 300 mm - cable: 2 x 3m 5 and 3 wires - colour: black RAL 9005 |
| Vega DC Synchro F-Signal | 41309B | Stroke: 300 mm - cable: 2 x 3m 5 and 3 wires - colour: white RAL 9010 |
| Model | Part Number | Description |
|---|---|---|
| Vega DC BMSline | 41579Z | 300mm - 24 Vdc - Grey |
| Vega DC BMSline | 41580A | 300mm - 24 Vdc - Black |
| Vega DC BMSline | 41581B | 300mm - 24 Vdc - White |
| Model | Part Number | Description |
|---|---|---|
| Vega AC | 40900K | Stroke: 300 mm - cable: 1,5 m 3 wires + earth - colour: grey RAL 9006 |
| Vega AC | 40901L | Stroke: 300 mm - cable: 1,5 m 3 wires + earth - colour: black RAL 9005 |
| Vega AC | 40902M | Stroke: 300 mm - cable: 1,5 m 3 wires + earth - colour: white RAL 9010 |
