SIRIUS
WINDOW ACTUATORS

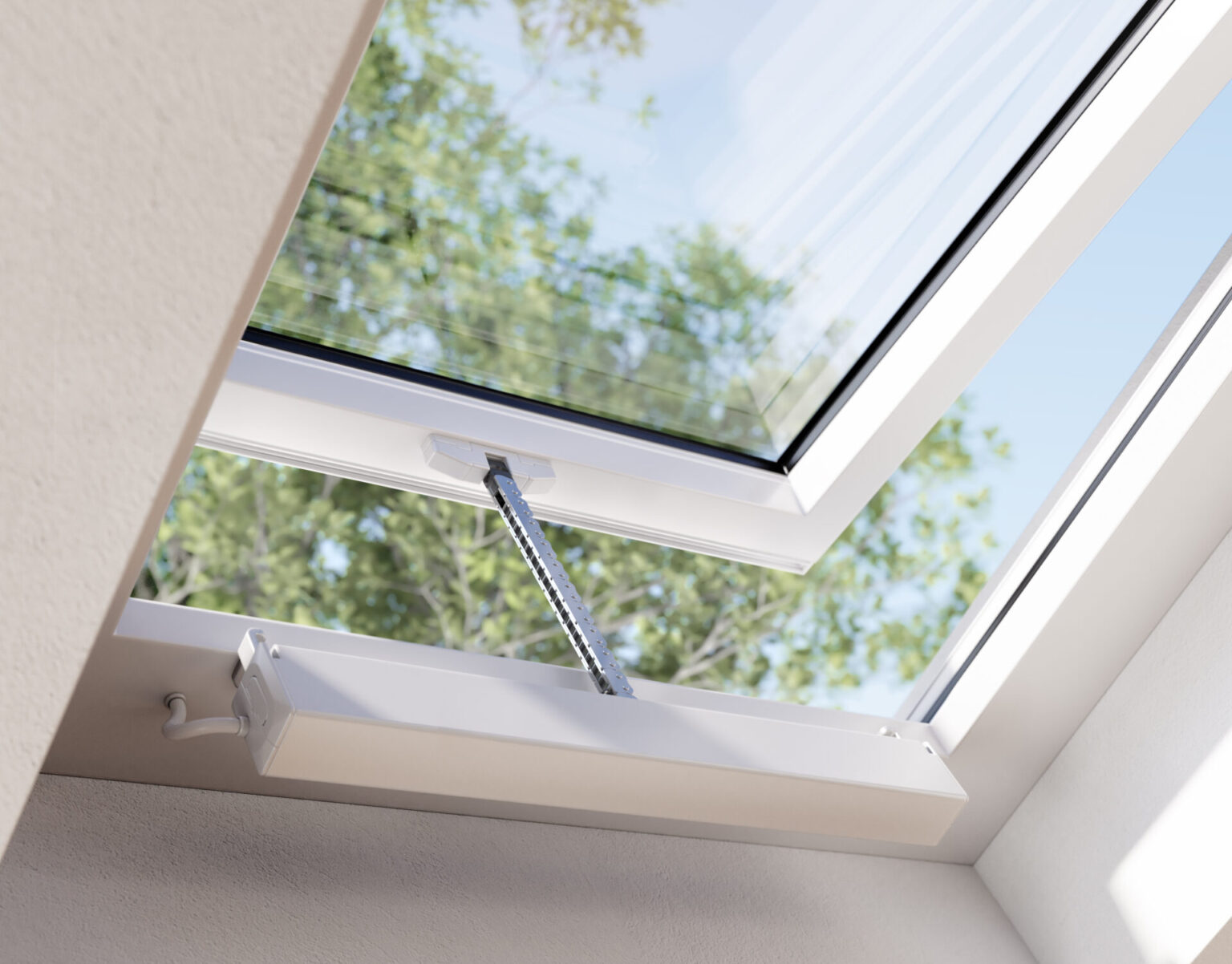

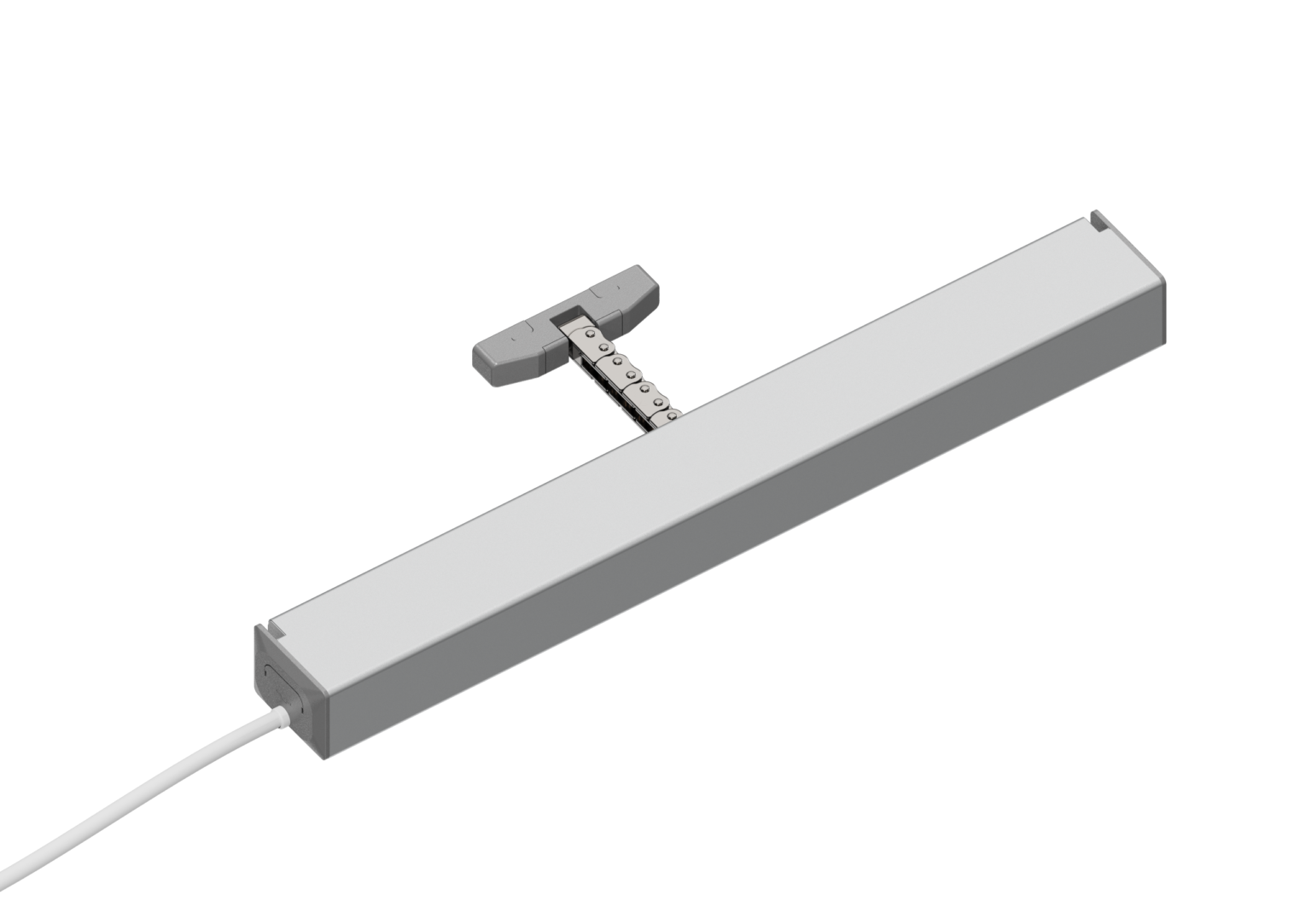

The new slim actuator for Natural Ventilation, with an aluminum case cover and invisible brackets. Double link chain for 300 N force. Four selectable strokes through dip-switches: 130, 200, 300, 400 mm. Exclusive system for quick and easy installation: Invisible actuator brackets, locked by side covers without screws. The chain connector locked by a clip cover without screws. Quick release for an easy window cleaning.
Select your version
MAIN FEATURES (all versions)
The new slim actuator for Natural Ventilation, with aluminum case cover and invisible brackets.
Double link chain for 300 N force. Chain exit in central position.
Four selectable strokes through dip-switches: 130 mm, 200 mm, 300 mm, 400 mm.
Exclusive system for quick and easy installation:

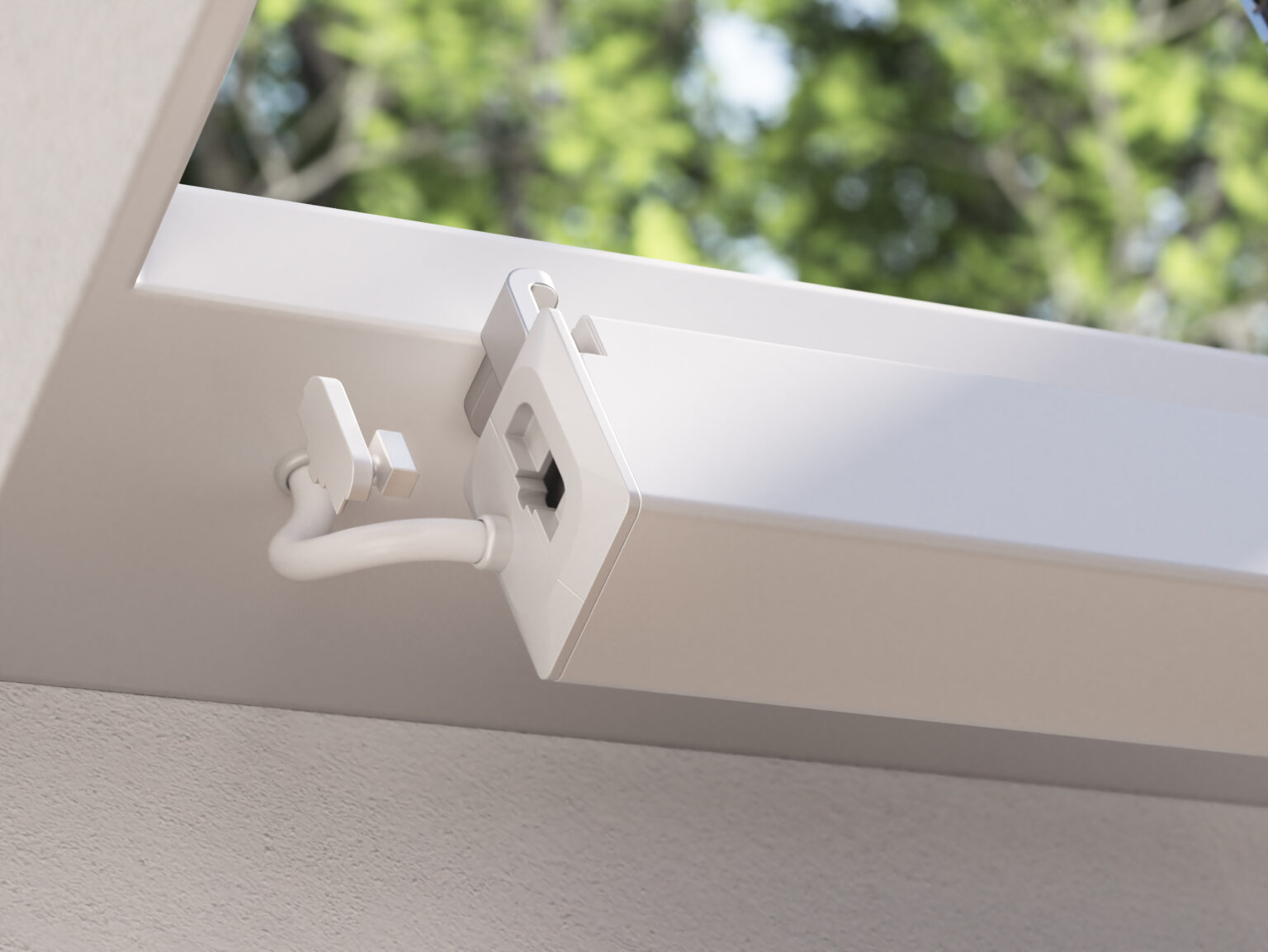

- Invisible actuator brackets: the brackets slide into the slots on the actuators, locked by side covers without screws.

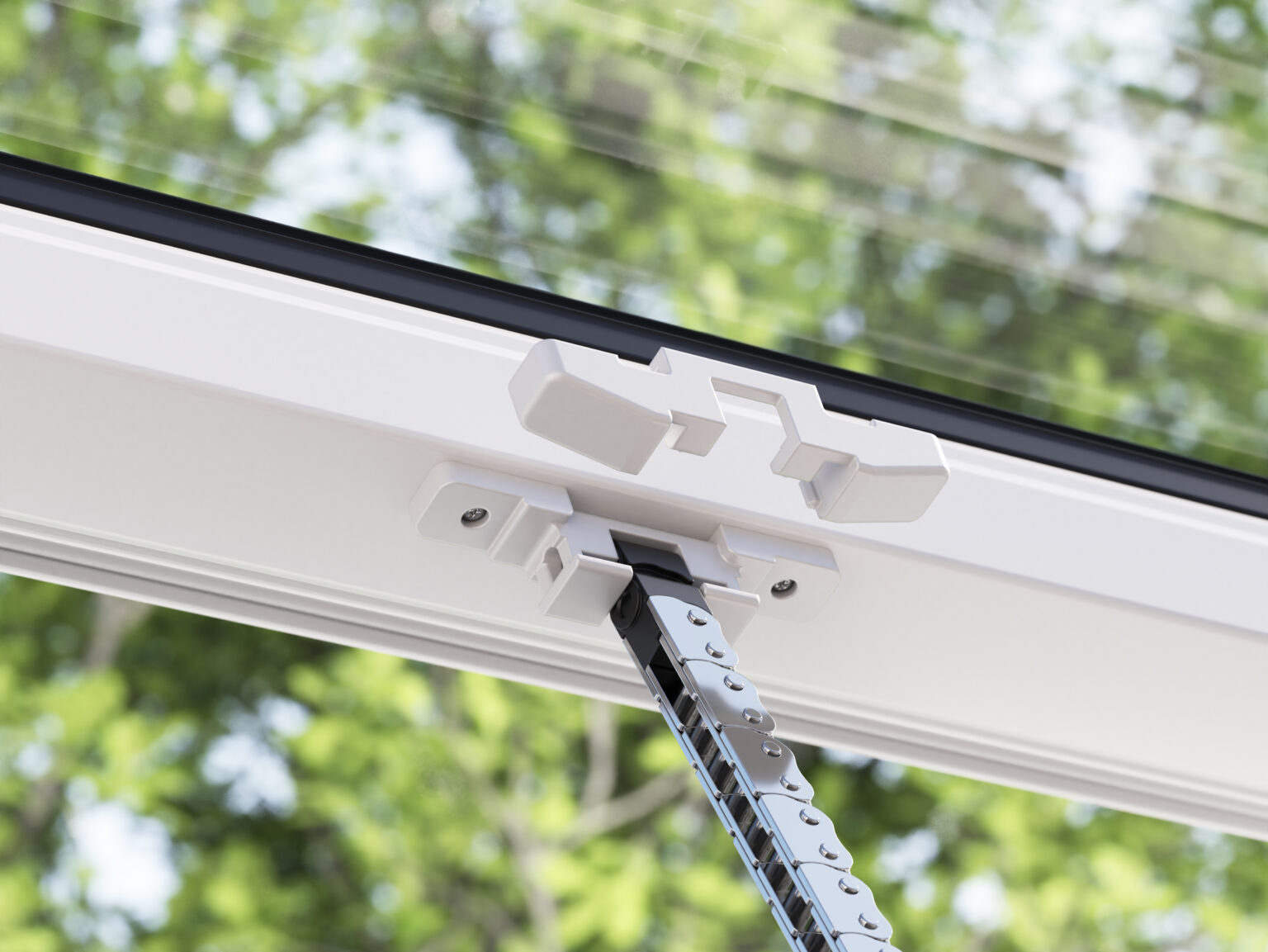

- The chain terminal placed into the slot on the slim sash connector is locked by a clip cover without screws.
- Quick release for an easy window cleaning.
The manual closing position regulation is not required: stop in closing position is regulated by an electronic limit switch control.
Electronic stop in the intermediate positions in case of overload. Double electric insulation actuator (no electric connection to earth is needed).
Sirius Chain actuators are supplied with an aluminum case cover that can be easily removed and painted (or customized) according to the final customer requirements. Aluminum case covers are also available as spare part/accessory; UCS distributors can offer a wide range of color/customization options.
Technical details of SIRIUS DC
SIRIUS DC window actuators are equipped with 1.5m cable (no synchronization, feedback signal and speed selection). Suitable for installation combined with the additional locking device E-LOCK (see relative technical data sheet).
Technical details of SIRIUS DC SYNCHRO
The SIRIUS SYNCHRO versions are equipped with an integrated speed synchronization control board for the installation of more than one actuator on the same vent, avoiding any external control panel (max 4 actuators + E-Lock). Available also in AC version.
Technical details of SIRIUS AC
The window actuator SIRIUS AC is provided with 1,5 m cable (no synchronization, feedback signal and speed selection).
Technical details of SIRIUS AC SYNCHRO
The SIRIUS SYNCHRO versions are equipped with an integrated speed synchronization control board for the installation of more than one actuator on the same vent, avoiding any external control panel (max 4 actuators).
Available also in DC version compatible with E-Lock.
SIRIUS DC
| Label | Value |
|---|---|
| Voltage Supply | 24 Vdc +/-10% |
| Current Absorbtion (Max load) | 0,8 A |
| Operation | Polarity inversion |
| Max Force (see stroke/force diagram) | 300 N |
| Selectable stroke | 130 - 200 - 300 - 400 mm |
| Speed | 7 mm/s |
| Locking force | 1200 N |
| Duty Cycle | 30 % |
| Limit Stop | Electronic |
| Safety Stop | Electronic |
| Parallel Connection | Yes |
| Protection Class | IP 40 |
| Cable | 1,5 m - 2 wires |
SIRIUS DC SYNCHRO
| Label | Value |
|---|---|
| Voltage Supply | 24 Vdc +/-10% |
| Current Absorbtion (Max load) | 0,8 A |
| Operation | Polarity inversion |
| Max Force (see stroke/force diagram) | 300 N |
| Selectable stroke | 130 - 200 - 300 - 400 mm |
| Speed | 7 mm/s |
| Locking Force | 1200 N |
| Duty Cycle | 30 % |
| Limit Stop | Electronic |
| Safety Stop | Electronic |
| Parallel Connection | Yes |
| Protection Class | IP 40 |
| Cable | 2.9 m - 4 wires |
| Synchro | Yes |
SIRIUS AC
| Label | Value |
|---|---|
| Voltage Supply | 230 Vac ± 10% |
| Current Absorbtion (Max load) | 0,14 A |
| Operation | Three wires (OPEN, CLOSE, COM) |
| Max Force (see stroke/force diagram) | 300 N |
| Selectable Stroke | 130 - 200 - 300 - 400 mm |
| Speed | 7 mm/s |
| Locking Force | 1200 N |
| Duty Cycle | 30 % |
| Limit Stop | Electronic |
| Safety Stop | Electronic |
| Parallel Connection | Yes |
| Protection Class | IP 40 |
| Cable | 1,5 m - 3 wires + earth |
SIRIUS AC SYNCHRO
| Label | Value |
|---|---|
| Voltage Supply | 230 Vac ± 10% |
| Current Absorbtion (Max load) | 0,14 A |
| Operation | Three wires (OPEN, CLOSE, COM) |
| Max Force (see stroke/force diagram) | 300 N |
| Selectable Stroke | 130 - 200- 300 - 400 mm |
| Speed | 7 mm/s |
| Locking Force | 1200 N |
| Duty Cycle | 30 % |
| Limit Stop | Electronic |
| Safety Stop | Electronic |
| Parallel Connection | Yes |
| Protection Class | IP 40 |
| Cable | 1 x 2,90 m cable 5 wires + earth |
| Synchro | Yes |
| Model | Part Number | Description |
|---|---|---|
| Sirius DC | 48264C | Included cover and brackets for outward opening - colour: silver anodized |
| Sirius DC | 48265D | Included cover and brackets for outward opening - colour: black RAL 9005 |
| Sirius DC | 48266E | Included cover and brackets for outward opening - colour: white RAL 9010 |
| Sirius DC | 48267F | Included cover and brackets for inward opening - colour: silver anodized |
| Sirius DC | 48268G | Included cover and brackets for inward opening - colour: black RAL 9005 |
| Sirius DC | 48269H | Included cover and brackets for inward opening - colour: white RAL 9010 |
| Sirius DC | 48261Z | Cover and bracket not included - colour: grey |
| Sirius DC | 48262A | Cover and bracket not included - colour: black |
| Sirius DC | 48263B | Cover and bracket not included - colour: white |
| Model | Part Number | Description |
|---|---|---|
| Sirius DC Synchro | 48273L | Included cover and brackets for outward opening - colour: silver anodized |
| Sirius DC Synchro | 48274M | Included cover and brackets for outward opening - colour: black RAL 9005 |
| Sirius DC Synchro | 48275N | Included cover and brackets for outward opening - colour: white RAL 9010 |
| Sirius DC Synchro | 48276O | Included cover and brackets for inward opening - colour: silver anodized |
| Sirius DC Synchro | 48277P | Included cover and brackets for inward opening - colour: black RAL 9005 |
| Sirius DC Synchro | 48278Q | Included cover and brackets for inward opening - colour: white RAL 9010 |
| Sirius DC Synchro | 48270I | Cover and brackets not included - colour: grey |
| Sirius DC Synchro | 48271J | Cover and brackets not included - colour: black |
| Sirius DC Synchro | 48272K | Cover and brackets not included - colour: white |
| Model | Part Number | Description |
|---|---|---|
| Sirius AC | 48246K | Included cover and brackets for outward opening - colour: silver anodized |
| Sirius AC | 48247L | Included cover and brackets for outward opening - colour: black RAL 9005 |
| Sirius AC | 48248M | Included cover and brackets for outward opening - colour: white RAL 9010 |
| Sirius AC | 48249N | Included cover and brackets for inward opening - colour: silver anodized |
| Sirius AC | 48250O | Included cover and brackets for inward opening - colour: black RAL 9005 |
| Sirius AC | 48251P | Included cover and brackets for inward opening - colour: white RAL 9010 |
| Sirius AC | 48243H | Cover and brackets not included - colour: grey |
| Sirius AC | 48244I | Cover and brackets not included - colour: black |
| Sirius AC | 48245J | Cover and brackets not included - colour: white |
| Model | Part Number | Description |
|---|---|---|
| Sirius AC Synchro | 48255T | Included cover and brackets for outward opening - colour: silver anodized |
| Sirius AC Synchro | 48256U | Included cover and brackets for outward opening - colour: black RAL 9005 |
| Sirius AC Synchro | 48257V | Included cover and brackets for outward opening - colour: white RAL 9010 |
| Sirius AC Synchro | 48258W | Included cover and brackets for inward opening - colour: silver anodized |
| Sirius AC Synchro | 48259X | Included cover and brackets for inward opening - colour: black RAL 9005 |
| Sirius AC Synchro | 48260Y | Included cover and brackets for inward opening - colour: white RAL 9010 |
| Sirius AC Synchro | 48252Q | Cover and brackets not included - colour: grey |
| Sirius AC Synchro | 48253R | Cover and brackets not included - colour: black |
| Sirius AC Synchro | 48254S | Cover and brackets not included - colour: white |
