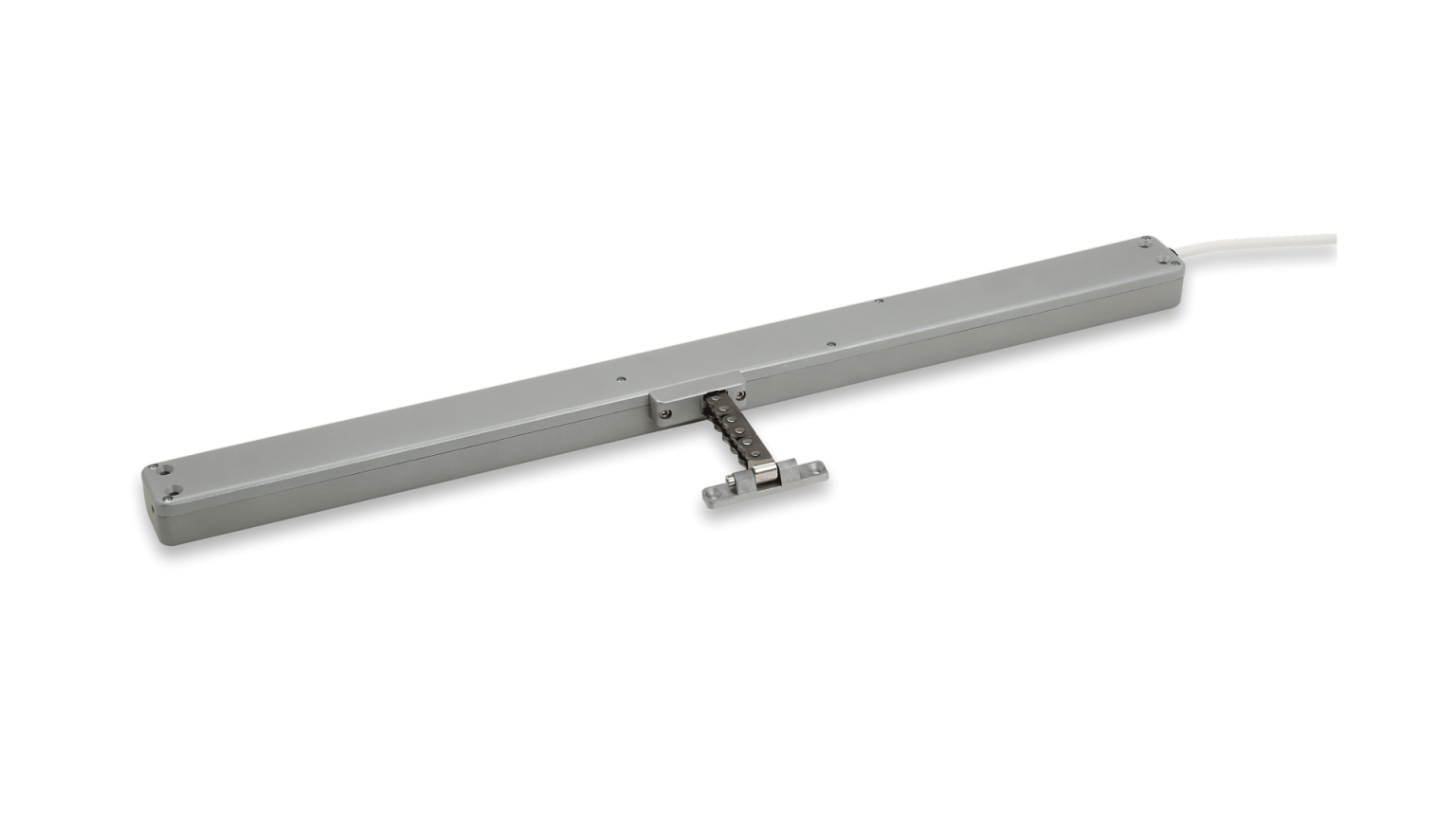

Technical details of QUASAR DC SYNCHRO

The QUASAR SYNCHRO versions are equipped with an integrated speed synchronization control board for the installation of more
than one actuator on the same vent, avoiding any external control panel (max 4 actuators + E-Lock).
DC version: max 4 QUASAR SYNCHRO DC. Available also in AC version: 1 QUASAR SYNCHRO AC + 1 QUASAR SYNCHRO DC (max 2 couples).

OTHER VERSIONS OF WINDOW ACTUATORS UPON REQUEST:

• QUASAR DC SYNCHRO versions with IP42 protection class, for a higher resistance against atmospheric agents.
• Versions UL and UR for USA and Canada.
• RAL colour and chain lenght can be customised.

Technical details of QUASAR DC SYNCHRO BOWCHAIN

UP TO 90 DEGREES OPENING thanks to a bow chain, allowing a wide opening angle according to the window size.
The need to increase the opening angle of many currently manufactured vents is becoming very important to increase the flow of fresh air for natural ventilation and smoke and heat extraction for life safety.

• Bow chain in double stainless-steel links available up to 500mm.
• Suitable for side hung windows opening inwards or outwards, increasing the opening angle up to 90°.
• The distance of the chain exit from the pivoting hinges must be 340 mm.
• Suitable for installation with the additional locking device E-LOCK, granting a perfect tightness of the windows, even on very high sashes.

QUASAR DC SYNCHRO BOW CHAIN is available in Synchro version; AC, DC and BMSline versions upon request.

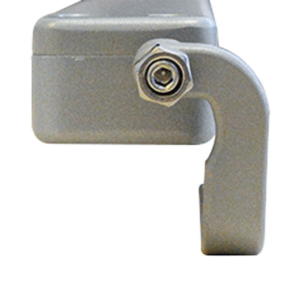

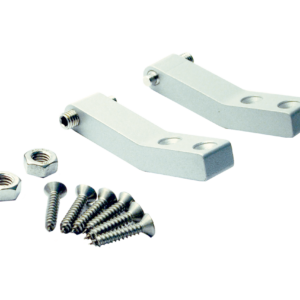

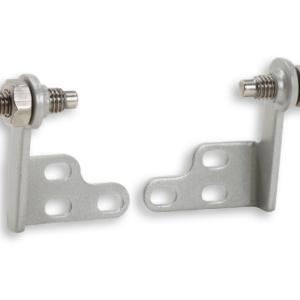

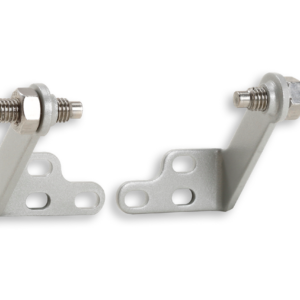

Brackets can be customized according to the aluminum profile system.

Technical details of QUASAR DC F-SIGNAL

The window actuator QUASAR DC F-SIGNAL provides free potential opening and closing feedback signal (maintained contact), activated by the current limit. Suitable for combined installation with the additional locking device E-LOCK or PLUSULTRA (see related data sheet).

OTHER VERSIONS OF WINDOW ACTUATORS UPON REQUEST:

• Versions UL and UR for USA and Canada.
• RAL colour and chain lenght can be customised.

Technical details of QUASAR DC SYNCHRO F-SIGNAL

QUASAR DC SYNCHRO F-SIGNAL versions are equipped with an integrated speed synchronization control board for the installation of more than one window actuator on the same vent, avoiding any external control panel.

QUASAR DC SYNCHRO F-SIGNAL versions provide free potential opening and closing feedback signal (maintained contact), activated by the current limit.

This window actuator is suitable for combined installation with the additional locking device E-LOCK (see related data sheet).

AC version: 1 Quasar AC Synchro + 1 Quasar DC Synchro (max 2 couples), DC version: max 4 Quasar DC Synchro.

OTHER VERSIONS OF WINDOW ACTUATORS UPON REQUEST:

• QUASAR DC SYNCHRO F-SIGNAL versions with IP42 protection class, for a higher resistance against atmospheric agents.
• Versions UL and UR for USA and Canada.
• RAL colour and chain lenght can be customised.

Technical details of QUASAR DC SYNCHRO DRAWBRIDGE

QUASAR DC SYNCHRO DRAWBRIDGE versions are equipped with an integrated speed synchronization control board for the installation of more than one window actuator on the same vent, avoiding any external control panel.

Quasar DC Synchro drawbridge version is suitable for installation of two units on bottom hinged windows, opening outwards 90°, for Smoke Ventilation.

Technical details of QUASAR DC BMSline

QUASAR DC BMSline new generation of compact chain actuators fully programmable in all functions, providing two-way communication with computer system. Integrating window automation with the BMS Building Management System will enable interaction with other systems in building (HVAC, lighting…) granting considerable energy saving, improving comfort and wellbeing, becoming health and productivity. At the same time the building’s safety is assured by smoke ventilation in emergencies.

BMSline SPECIAL FEATURES:

Compatible with all existing building management systems.

Continual, totally controlled window with 100% real-time feedback. Not just an ON/OFF operation (open/close)

Addressable actuators in order to control the environment of each room in a building.

No need for external modules/control panels: the actuator has built-in intelligence

Window controlled locally by a standard wall switch, even with a centralized Building Management System.

Smoke Ventilation Control Panels with back-up batteries can be directly and safely connected.

BMSline PROGRAMMABLE PARAMETERS:

Stroke

Percentage of opening and closing action.

Speed, in opening and closing action.

Force, in opening and closing action.

Real close position of the window.

Closing position tolerance.

Soft stop length and speed.

BMSline CHAIN ACTUATORS FEEDBACK:

Full opening or closing

Percentage of opening and position of the chain.

Current setting of parameters and scenarios

Location in the building and address in the network.

Statistics

Command state

Eventual Failures

BMSline SELECTABLE SCENARIOS:

Reduction of entrapment risk.

Speed synchronization for multiple actuators on the same window.

“Soft” closing of the window.

Quiet operation in case of ventilation and full speed and force for Smoke and Heat Extraction.

Local control of the window even with centralized management.

Technical details of QUASAR AC

The window actuator QUASAR AC is provided with 1,5 m cable (no synchronization, feedback signal and speed selection).

OTHER VERSIONS OF WINDOW ACTUATORS UPON REQUEST:

• Versions UL and UR for USA and Canada.
• RAL colour and chain lenght can be customised.

Technical details of QUASAR AC SYNCHRO

The window actuator QUASAR AC SYNCHRO versions are equipped with an integrated speed synchronization control board for the installation of more than one actuator on the same vent, avoiding any external control panel.

AC version: 1 Quasar AC Synchro + 1 Quasar DC Synchro (max 2 couples).

OTHER VERSIONS OF WINDOW ACTUATORS UPON REQUEST:

• Versions UL and UR for USA and Canada.
• RAL colour and chain lenght can be customised.
