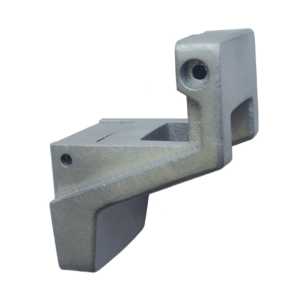

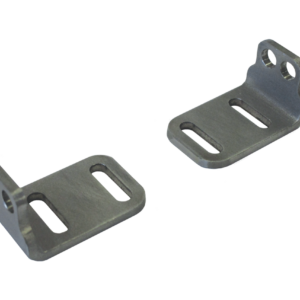

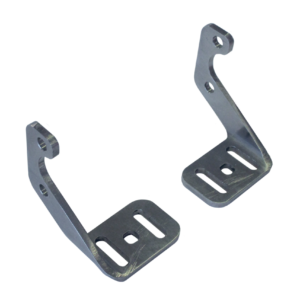

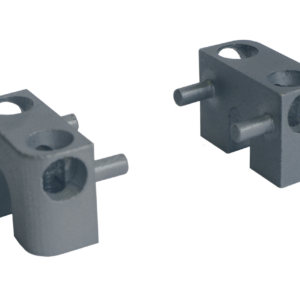

NANO
WINDOW ACTUATORS
The window chain actuators NANO have highest performance (400 N) in the smallest case (24 x 35 mm). Very silent operation. Chain in double stainless steel links. Aluminum extrusion case. Electronic stop in the intermediate positions in case of overload. Soft stop in close and fully open position. Reduction of entrapment risk: stop and reverse action in case of obstacle detected outside the Soft Stop zone.
Select your version
MAIN FEATURES (all versions)
The window actuators NANO have highest performance (400 N) in the smallest case (24 x 35 mm). Very silent operation. Chain in double stainless steel links. Aluminum extrusion case. Electronic stop in the intermediate positions in case of overload. Soft stop in close and fully open position. Reduction of entrapment risk: stop and reverse action in case of obstacle detected outside the Soft Stop zone.
Click above to watch a short video presentation about NANO.
Technical details of NANO DC
The window actuator NANO DC is provided with 1,5 m cable (no synchronization, feedback signal and speed selection). Suitable for combined installation with the additional locking device E-LOCK (see related data sheet).
OTHER VERSIONS OF WINDOW ACTUATORS UPON REQUEST:
NANO DC versions with IP42 protection class, for a higher resistance against atmospheric agents.
Versions UL and UR for USA and Canada.
Technical details of NANO DC SYNCHRO
NANO DC SYNCHRO versions are equipped with an integrated speed synchronization control board for the installation of more than one actuator on the same vent, avoiding any external control panel (max 4 actuators + E-Lock).
The window actuator NANO DC SYNCHRO versions provide also open/close feedback.
Cable connection on both sides
OTHER VERSIONS OF WINDOW ACTUATORS UPON REQUEST:
Versions UL and UR for USA and Canada.
Technical details of NANO DC SYNCHRO F-SIGNAL
The window actuator NANO DC SYNCHRO F-SIGNAL versions are equipped with an integrated speed synchronization control board for the installation of more than one actuator on the same vent, avoiding any external control panel (max 4 actuators + E-Lock).
NANO DC SYNCHRO F-SIGNAL versions provide free potential opening and closing feedback signal (maintained contact), activated by the current limit.
Cable connection on both sides
OTHER VERSIONS OF WINDOW ACTUATORS UPON REQUEST:
Versions UL and UR for USA and Canada.
Technical details of NANO DC BMSline
NANO DC BMSline is the new generation of compact chain actuators fully programmable in all functions, providing two-way communication with computer system. Integrating window automation with the BMS Building Management System will enable interaction with other systems in building (HVAC, lighting…) granting considerable energy saving, improving comfort and wellbeing, becoming health and productivity. At the same time the building’s safety is assured by smoke ventilation in emergencies.
BMSline SPECIAL FEATURES:
Compatible with all existing building management systems
Continual, totally controlled window with 100% real-time feedback. Not just an ON/OFF operation (open/close)
Addressable actuators in order to control the environment of each room in a building.
No need for external modules/control panels: the actuator has built-in intelligence
Window controlled locally by a standard wall switch, even with a centralized Building Management System.
Smoke Ventilation Control Panels with back-up batteries can be directly and safely connected.
BMSline PROGRAMMABLE PARAMETERS:
Stroke
Percentage of opening and closing action.
Speed, in opening and closing action.
Force, in opening and closing action.
Real close position of the window.
Closing position tolerance.
Soft stop length and speed.
BMSline CHAIN ACTUATOR FEEDBACK:
Full opening or closing
Percentage of opening and position of the chain.
Current setting of parameters and scenarios
Location in the building and address in the network.
Statistics
Command state
Eventual Failures
SCENARIOS:
Reduction of entrapment risk.
Speed synchronization for multiple actuators on the same window.
“Soft” closing of the window.
Quiet operation in case of ventilation and full speed and force for Smoke and Heat Extraction.
| Label | Value |
|---|---|
| Voltage Supply | 24 Vdc +/-15% |
| Current Absorbtion (Max load) | 1,2 A |
| Operation | Polarity inversion |
| Max Force (see stroke/force diagram) | 400 N |
| Available stroke | 200 / 300 / 400 / 500 / 600 / 800 mm |
| Speed | 4 - 14 mm/s |
| Duty Cycle | 30 % |
| Limit Stop | Electronic |
| Safety Stop | Electronic |
| Parallel Connection | Yes |
| Protection Class | IP 40 |
NANO DC
| Label | Value |
|---|---|
| Voltage Supply | 24 Vdc +/-15% |
| Current Absorbtion (Max load) | 1,2 A |
| Operation | Polarity inversion |
| Max Force (see stroke/force diagram) | 400 N |
| Available stroke | 200 / 300 / 400 / 500 / 600 / 800 mm |
| Speed | 4 - 14 mm/s |
| Duty Cycle | 30 % |
| Limit Stop | Electronic |
| Safety Stop | Electronic |
| Parallel Connection | Yes |
| Protection Class | IP 40 |
NANO DC SYNCHRO
| Label | Value |
|---|---|
| Voltage Supply | 24 Vdc +/-15% |
| Current Absorbtion (Max load) | 1,2 A |
| Operation | Polarity inversion |
| Max Force (see stroke/force diagram) | 400 N |
| Available stroke | 200 / 300 / 400 / 500 / 600 / 800 mm |
| Speed | 4 - 14 mm/s |
| Duty Cycle | 30 % |
| Limit Stop | Electronic |
| Safety Stop | Electronic |
| Parallel Connection | Yes |
| Protection Class | IP 40 |
| Synchro | Yes |
| Feedback | Yes |
NANO DC SYNCHRO F-SIGNAL
| Label | Value |
|---|---|
| Voltage Supply | 24 Vdc +/-15% |
| Current Absorbtion (Max load) | 1,2 A |
| Operation | Polarity inversion |
| Max Force (see stroke/force diagram) | 400 N |
| Available stroke | 200 / 300 / 400 / 500 / 600 / 800 mm |
| Speed | 4 - 14 mm/s |
| Duty Cycle | 30 % |
| Limit Stop | Electronic |
| Safety Stop | Electronic |
| Parallel Connection | Yes |
| Protection Class | IP 40 |
| Synchro | Yes |
| Feedback | Yes - Free potential |
NANO DC BMSline
| Label | Value |
|---|---|
| Voltage Supply | 24 Vdc +/-15% |
| Current Absorbtion (Max load) | 1,2 A |
| Operation | Polarity inversion |
| Max Force (see stroke/force diagram) | 400 N |
| Available stroke | 200 / 300 / 400 / 500 / 600 / 800 mm |
| Speed | 4 - 14 mm/s |
| Duty Cycle | 30 % |
| Limit Stop | Electronic |
| Safety Stop | Electronic |
| Parallel Connection | Yes |
| Protection Class | IP 40 |
| Voltage Supply | 24 Vdc +/-15% |
| Current Absorbtion (Max load) | 1,3 A |
| Operation | programmable |
| Max Force (see stroke/force diagram) | progr. up to 400 N |
| Available stroke (programmable) | 200 / 300 / 400 / 500 / 600 / 800 mm |
| Speed | progr. up to 14 mm/s |
| Duty Cycle | 30 % |
| Limit Stop | Electronic |
| Safety Stop | Electronic |
| Parallel Connection | Yes |
| Synchro | Yes |
| Feedback | Yes by Modbus RTU |
| Protection Class | IP 40 |
| Model | Part Number | Description |
|---|---|---|
| NANO DC | 41944Z | 200mm - Grey |
| NANO DC | 41945A | 200mm - Black |
| NANO DC | 41946B | 200mm - White |
| NANO DC | 41947C | 300mm - Grey |
| NANO DC | 41948D | 300mm - Black |
| NANO DC | 41949E | 300mm - White |
| NANO DC | 41950F | 400mm - Grey |
| NANO DC | 41951G | 400mm - Black |
| NANO DC | 41952H | 400mm - White |
| NANO DC | 41953I | 500mm - Grey |
| NANO DC | 41954J | 500mm - Black |
| NANO DC | 41955K | 500mm - White |
| NANO DC | 41956L | 600mm - Grey |
| NANO DC | 41957M | 600mm - Black |
| NANO DC | 41958N | 600mm - White |
| NANO DC | 41959O | 800mm - Grey |
| NANO DC | 41960P | 800mm - Black |
| NANO DC | 41961Q | 800mm - White |
| Model | Part Number | Description |
|---|---|---|
| Nano DC Synchro | 41962R | 200mm - Grey |
| Nano DC Synchro | 41963S | 200mm - Black |
| Nano DC Synchro | 41964T | 200mm - White |
| Nano DC Synchro | 41965U | 300mm - Grey |
| Nano DC Synchro | 41966V | 300mm - Black |
| Nano DC Synchro | 41967W | 300mm - White |
| Nano DC Synchro | 41968X | 400mm - Grey |
| Nano DC Synchro | 41969Y | 400mm - Black |
| Nano DC Synchro | 41970Z | 400mm - White |
| Nano DC Synchro | 41971A | 500mm - Grey |
| Nano DC Synchro | 41972B | 500mm - Black |
| Nano DC Synchro ano DC | 41973C | 500mm - White |
| Nano DC Synchro | 41974D | 600mm - Grey |
| Nano DC Synchro | 41975E | 600mm - Black |
| Nano DC Synchro | 41976F | 600mm - White |
| Nano DC Synchro | 41977G | 800mm - Grey |
| Nano DC Synchro | 41978H | 800mm - Black |
| Nano DC Synchro | 41979I | 800mm - White |
| Model | Part Number | Description |
|---|---|---|
| NANO DC Synchro | 41980J | F-SIGNAL - 200mm - Grey |
| NANO DC Synchro | 41981K | F-SIGNAL - 200mm - Black |
| NANO DC Synchro | 41982L | F-SIGNAL - 200mm - White |
| NANO DC Synchro | 41983M | F-SIGNAL - 300mm - Grey |
| NANO DC Synchro | 41984N | F-SIGNAL - 300mm - Black |
| NANO DC Synchro | 41985O | F-SIGNAL - 300mm - White |
| NANO DC Synchro | 41986P | F-SIGNAL - 400mm - Grey |
| NANO DC Synchro | 41987Q | F-SIGNAL - 400mm - Black |
| NANO DC Synchro | 41988R | F-SIGNAL - 400mm - White |
| NANO DC Synchro | 41989S | F-SIGNAL - 500mm - Grey |
| NANO DC Synchro | 41990T | F-SIGNAL - 500mm - Black |
| NANO DC Synchro | 41991U | F-SIGNAL - 500mm - White |
| NANO DC Synchro | 41992V | F-SIGNAL - 600mm - Grey |
| NANO DC Synchro | 41993W | F-SIGNAL - 600mm - Black |
| NANO DC Synchro | 41994X | F-SIGNAL - 600mm - White |
| NANO DC Synchro | 41995Y | F-SIGNAL - 800mm - Grey |
| NANO DC Synchro | 41996Z | F-SIGNAL - 800mm - Black |
| NANO DC Synchro | 41997A | F-SIGNAL - 800mm - White |
| Model | Part Number | Description |
|---|---|---|
| NANO DC BMSline | 41998B | 200mm - Grey |
| NANO DC BMSline | 41999C | 200mm - Black |
| NANO DC BMSline | 42000D | 200mm - White |
| NANO DC BMSline | 42001E | 300mm - Grey |
| NANO DC BMSline | 42002F | 300mm - Black |
| NANO DC BMSline | 42003G | 300mm - White |
| NANO DC BMSline | 42004H | 400mm - Grey |
| NANO DC BMSline | 42005I | 400mm - Black |
| NANO DC BMSline | 42006J | 400mm - White |
| NANO DC BMSline | 42007K | 500mm - Grey |
| NANO DC BMSline | 42008L | 500mm - Black |
| NANO DC BMSline | 42009M | 500mm - White |
| NANO DC BMSline | 42010N | 600mm - Grey |
| NANO DC BMSline | 42011O | 600mm - Black |
| NANO DC BMSline | 42012P | 600mm - White |
| NANO DC BMSline | 42013Q | 800mm - Grey |
| NANO DC BMSline | 42014R | 800mm - Black |
| NANO DC BMSline | 42015S | 800mm - White |
