Select your version

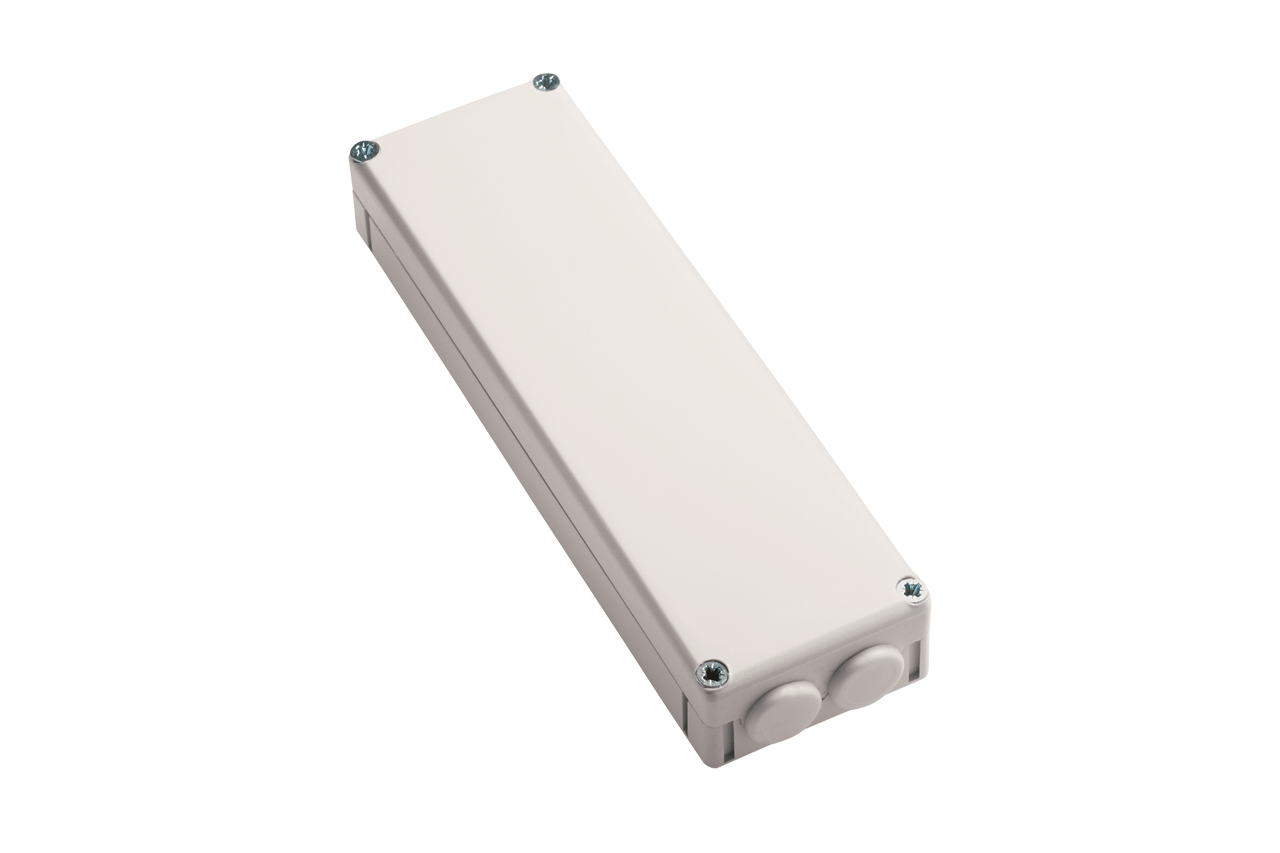

Technical details of Radio Receiver 230 Vac
Radio receiver for 230Vac actuator. Includes two inputs for open and close button.
Compatible with UCS radio transmitter 41729T.
Technical details of Radio Receiver 24 Vdc
Radio receiver for 24Vdc actuator. Includes two inputs for open and close button.
Compatible with UCS radio transmitter 41729T.
Radio Receiver 230 Vac
| Label | Value |
|---|---|
| INPUT VOLTAGE | 230 Vac |
| OUTPUT VOLTAGE | 230 Vac |
| POWER | 350 W |
| DIMENSION | 125 x 38 x 20 mm |
Radio Receiver 24 Vdc
| Label | Value |
|---|---|
| INPUT VOLTAGE | 24 Vdc |
| OUTPUT VOLTAGE | 24 Vdc |
| NOMINAL CURRENT | 4 A |
| DIMENSION | 125 x 38 x 20 mm |
| Model | Part Number | Description |
|---|---|---|
| Radio | 41735Z | Radio receiver 230Vac |
| Model | Part Number | Description |
|---|---|---|
| Radio | 41734Y | Radio receiver 24Vdc |
