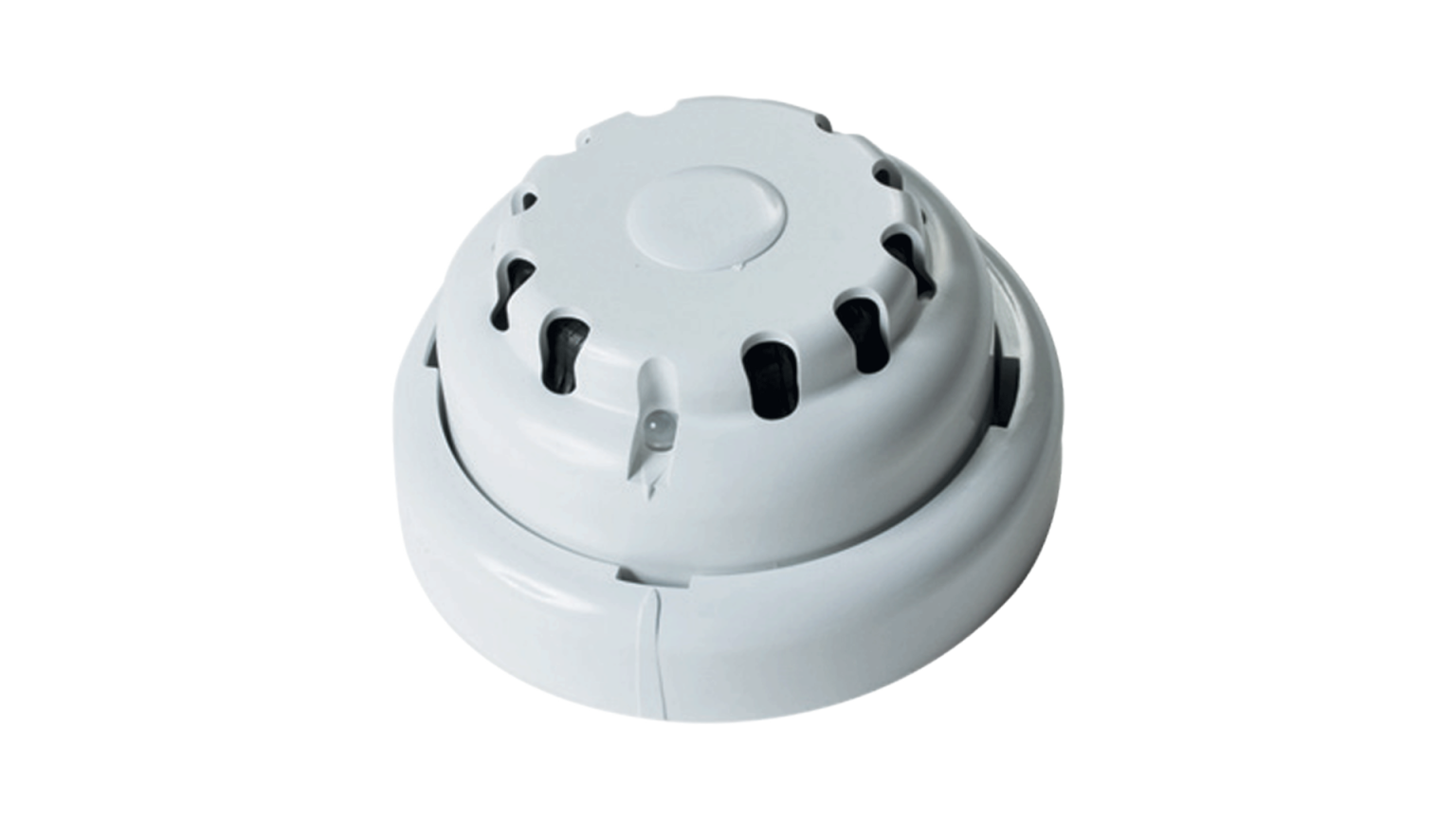

OPTICAL SMOKE DETECTOR MAIN FEATURES
The optical smoke detector works by infrared light diffusion for Tyndall effect.
It is certified according to the UNIEN 54 – 719 regulations. Alarm signal through the red led.
A frequent cleaning, especially in dusty enviroments, is recommended.
| Label | Value |
|---|---|
| ALARM SIGNAL | Red LED |
| RESPONS TIME | 3 sec |
| VOLTAGE SUPPLY | 24 V (min. 10 V, max. 30 V) |
| TEMPERATURE RANGE | -10° + 80°C |
| DEGREE OF HUMIFITY | < 95% |
| MAX AIR SPEED | 10 m/s |
| DETECTED SURFACE | 40 m² |
| Model | Part Number | Description |
|---|---|---|
| Sensor | 36418Q | Optical Smoke Detector |
