STILE
WINDOW ACTUATORS
Double link chain for a better load resistance in case of top-hinged windows, heavy windows or roof windows. Glass strengthened nylon casing. Double electric insultation actuator (no electric connection to earth is needed). The special removable plug allows a very quick and easy connection. It is deal for the final test of the actuators on the building site. Provided with closing feedback signal.
Select your version
MAIN FEATURES (all versions)
Double link chain for a better load resistance in case of top-hinged windows, heavy windows or roof windows.
Glass strengthened nylon casing. Double electric insultation actuator (no electric connection to earth is needed).

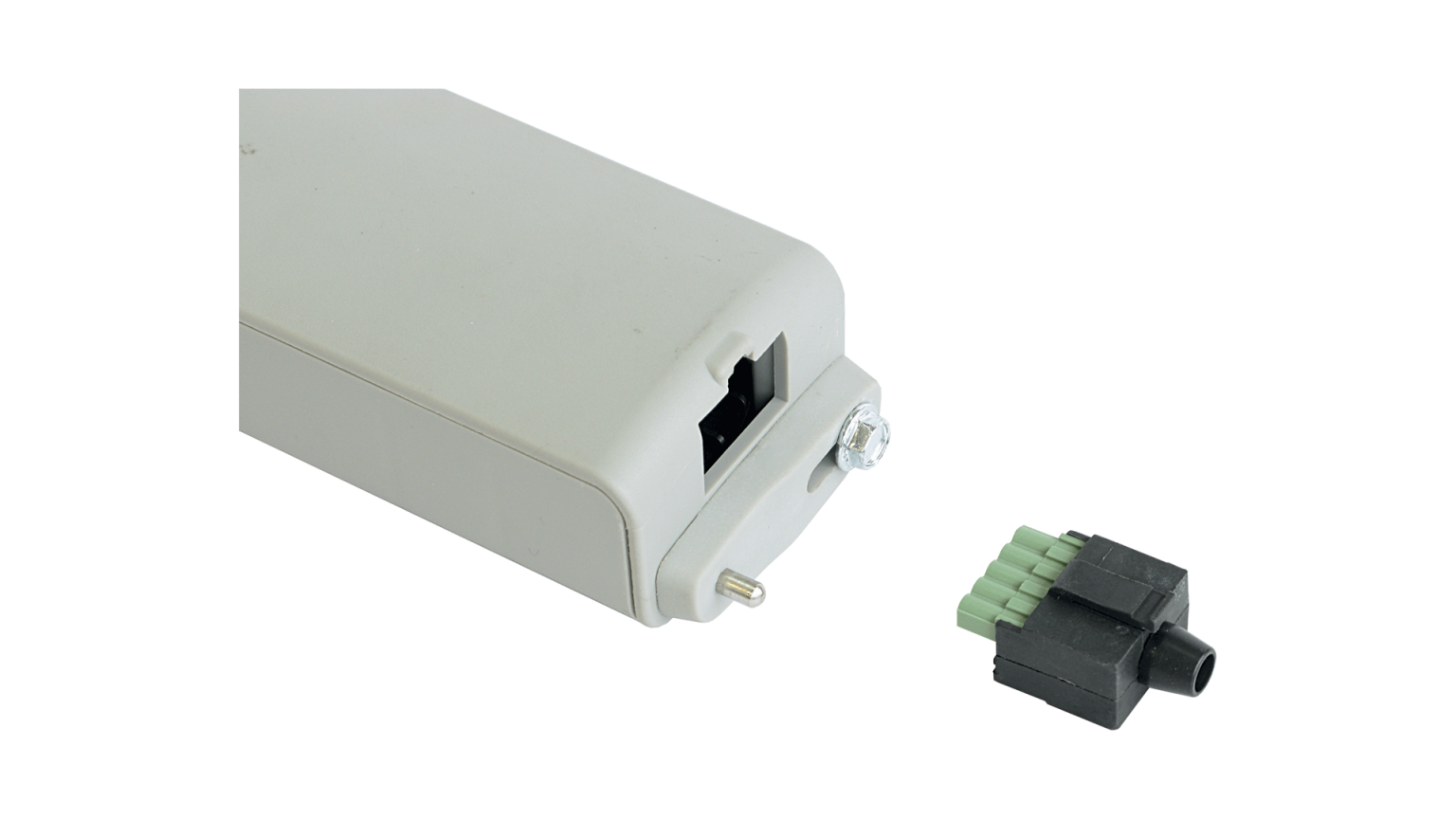

The special removable plug allows a very quick and easy connection. It is deal for the final test of the actuators on the building site.
Provided with closing feedback signal.
Technical details of STILE

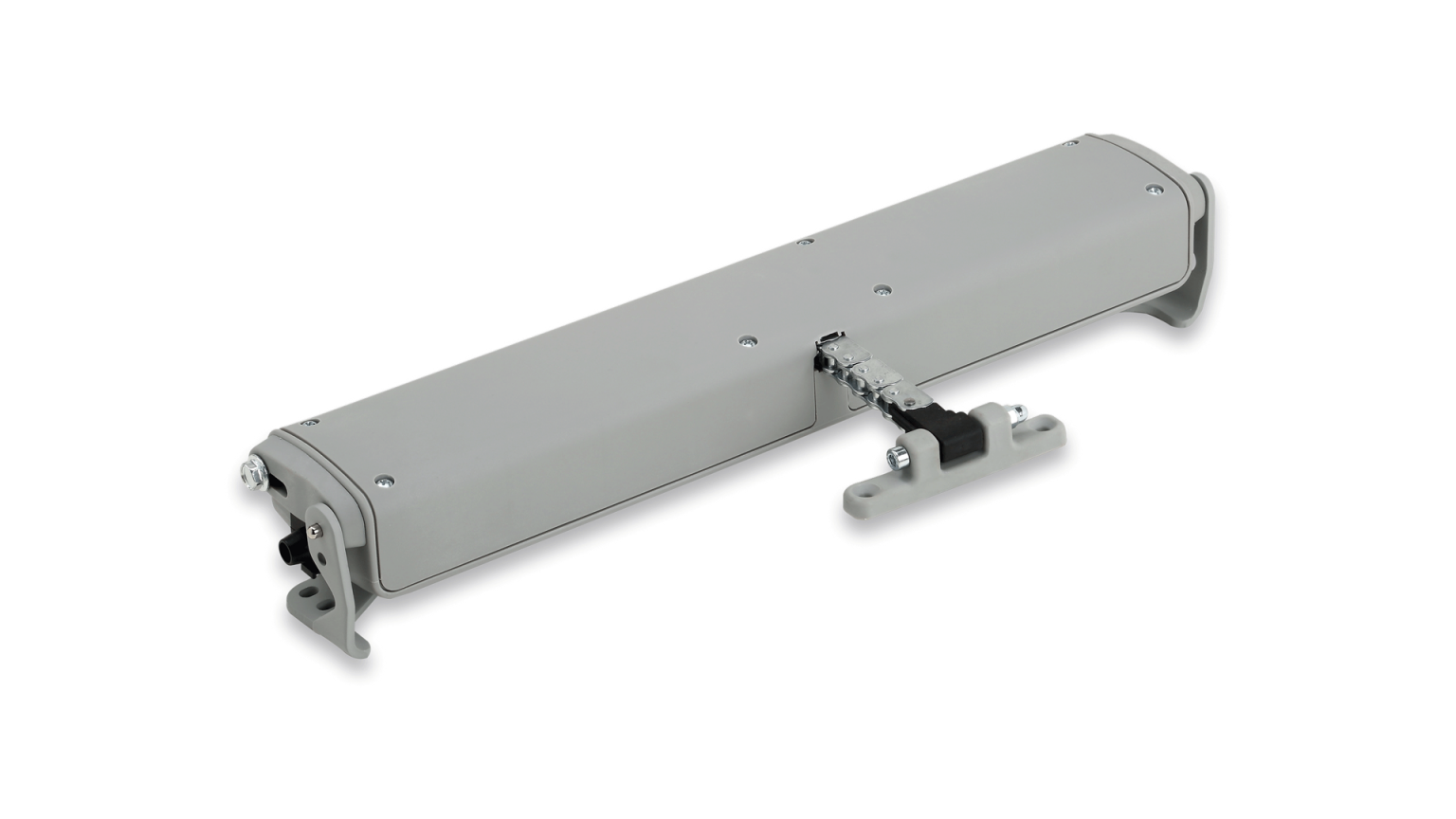

CHAIN WINDOW ACTUATOR STILE with selectable stroke 230/400 mm
Technical details of STILE R
CHAIN WINDOW ACTUATOR STILE R with a maximum stroke of 400 mm, adjustable from 0 to 300 mm, by positioning a magnet on the chain during installation.
Technical details of STILE RF
CHAIN WINDOW ACTUATOR STILE RF with a selectable stroke 230/400 mm and integrated Radio Receiver.

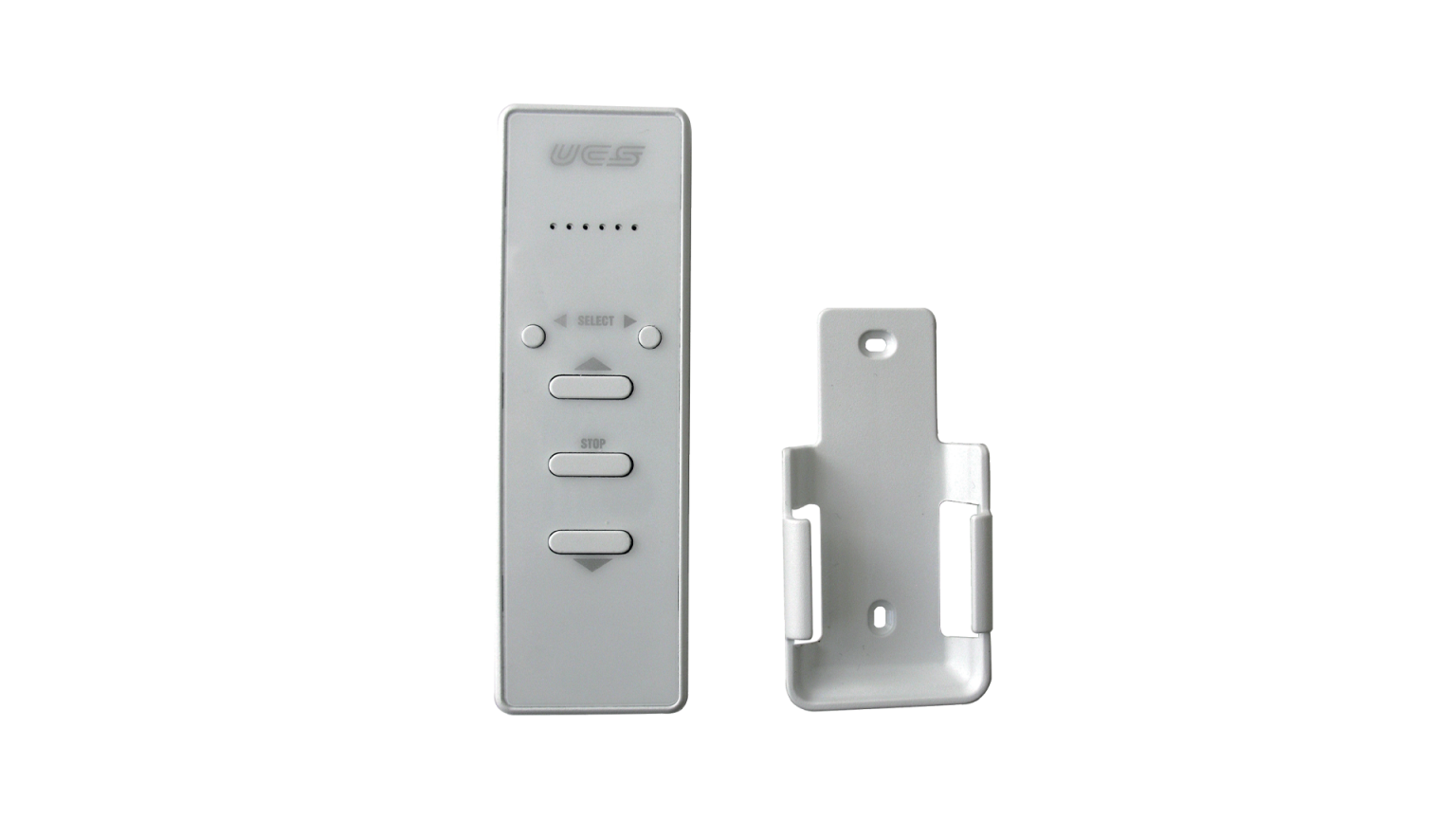

Radio Transmitter 6ch to be ordered separately.
| Label | Value |
|---|---|
| Voltage Supply | 230 Vac 50/80 Hz |
| Current Absorbtion (Max load) | 0,8 A |
| Max Force (see stroke/force diagram) | 300 N |
| Speed | 30 mm/s |
| Limit Stop | Micro Switches |
| Protection | Thermic |
| Parallel Connection | Yes |
| Protection Class | IP 20 |
STILE
| Label | Value |
|---|---|
| Voltage Supply | 230 Vac 50/80 Hz |
| Current Absorbtion (Max load) | 0,8 A |
| Max Force (see stroke/force diagram) | 300 N |
| Speed | 30 mm/s |
| Limit Stop | Micro Switches |
| Protection | Thermic |
| Parallel Connection | Yes |
| Protection Class | IP 20 |
| Operation | Three wires (OPEN/CLOSE/COM) |
| Available stroke | 230 / 400 mm |
STILE R
| Label | Value |
|---|---|
| Voltage Supply | 230 Vac 50/80 Hz |
| Current Absorbtion (Max load) | 0,8 A |
| Max Force (see stroke/force diagram) | 300 N |
| Speed | 30 mm/s |
| Limit Stop | Micro Switches |
| Protection | Thermic |
| Parallel Connection | Yes |
| Protection Class | IP 20 |
| Operation | Three wires (OPEN/CLOSE/COM) |
| Available stroke | adjustable from 0 to 300 mm |
STILE RF
| Label | Value |
|---|---|
| Voltage Supply | 230 Vac 50/80 Hz |
| Current Absorbtion (Max load) | 0,8 A |
| Max Force (see stroke/force diagram) | 300 N |
| Speed | 30 mm/s |
| Limit Stop | Micro Switches |
| Protection | Thermic |
| Parallel Connection | Yes |
| Protection Class | IP 20 |
| Operation | Three wires and radio remote control |
| Available Stroke | 230 / 400 mm |
| Radio receiver | Yes - integrated |
| Model | Part Number | Description |
|---|---|---|
| STILE | 41554A | Chain Actuator Stile G Grey |
| STILE | 41555B | Chain Actuator Stile B Black |
| STILE | 41556C | Chain Actuator Stile W White |
| Model | Part Number | Description |
|---|---|---|
| STILE R | 41558E | Chain Actuator Stile-R adjustable from 0 to 300 mm ; Grey |
| STILE R | 41559F | Chain Actuator Stile-R adjustable from 0 to 300 mm ; Black |
| STILE R | 41560G | Chain Actuator Stile-R adjustable from 0 to 300 mm ; White |
| Model | Part Number | Description |
|---|---|---|
| STILE RF | 41730U | Chain actuator with a selectable stroke 230/400 mm and integrated Radio Receiver - Grey |
| STILE RF | 41731V | Chain actuator with a selectable stroke 230/400 mm and integrated Radio Receiver - Black |
| STILE RF | 41732W | Chain actuator with a selectable stroke 230/400 mm and integrated Radio Receiver - White |
