SINTESI 2000
WINDOW ACTUATORS
Possibility of selecting two different strokes: 250 mm or 380 mm. Three dovetail slides for an easy installation; the sliding fixing bracket is included in the package. Exclusive system for electrical connection, the special removable plug allows a very quick and easy connection.
MAIN FEATURES
Possibility of selecting two different strokes: 250 mm or 380 mm.

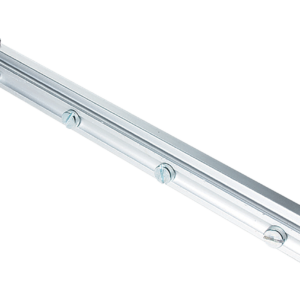

Three dovetail slides for an easy installation; the sliding fixing bracket is included in the package.

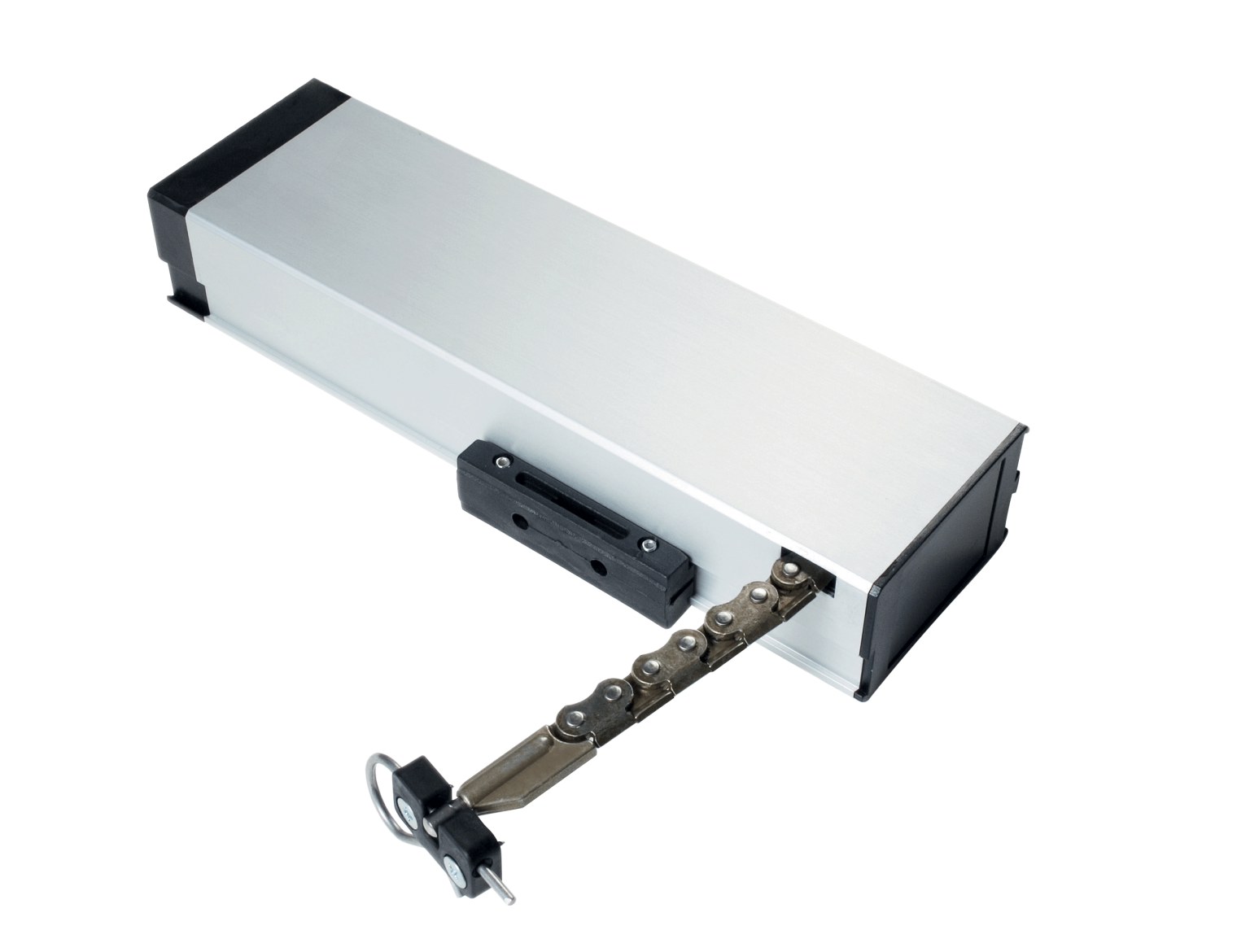

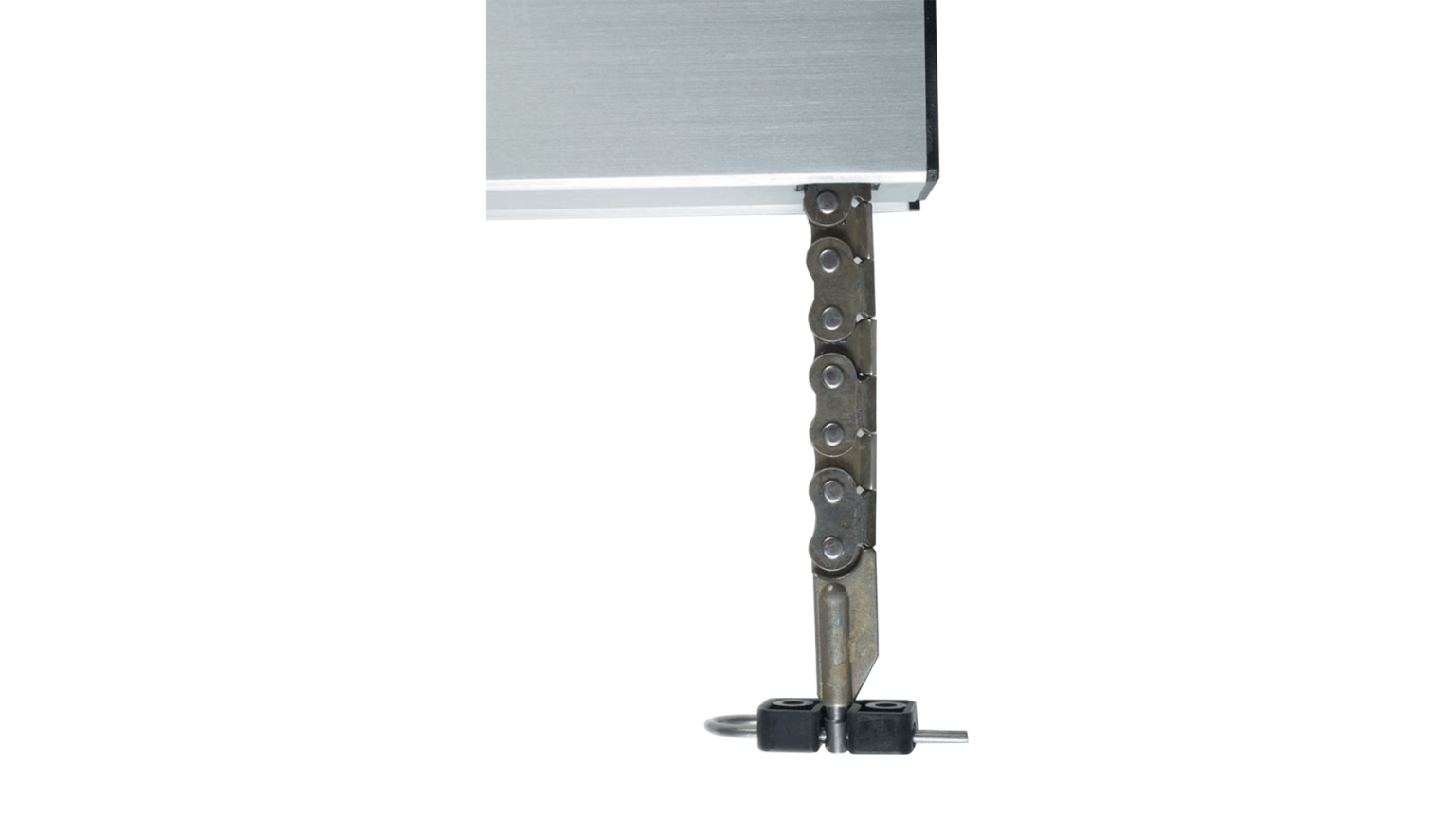

CHAIN WINDOW ACTUATOR SINTESI 2000: exclusive system for electrical connection.

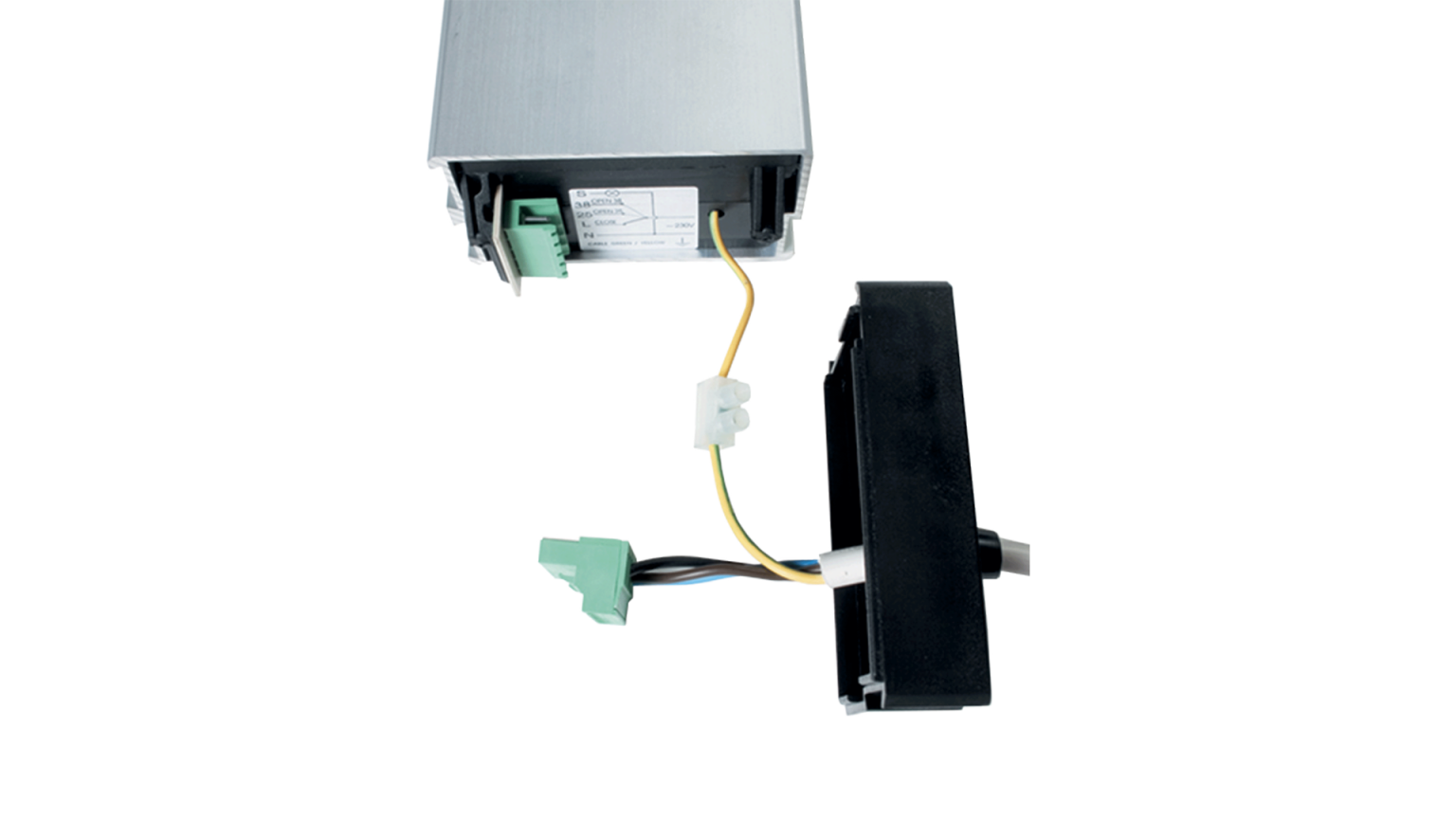

The special removable plug allows a very quick and easy connection.
It is deal for the final test of the actuators on the building site.
| Label | Value |
|---|---|
| Voltage Supply | 230 +/-10% |
| Current Absorbtion (Max load) | 0,65 A |
| Operation | Three wires (OPEN/CLOSE/COM) + earth |
| Max Force (see stroke/force diagram) | 180 N |
| Available stroke | 250 / 380 mm |
| Speed | 40 mm/sec |
| Limit Stop | Micro Switches |
| Protection | Thermic |
| Parallel Connection | Yes |
| Protection Class | IP20 |
| Model | Part Number | Description |
|---|---|---|
| SINTESI 2000 | 40313C | Chain actuator Sintesi 2000 A - SILVER ANODIZED |
| SINTESI 2000 | 40314D | Chain actuator Sintesi 2000 B - DARK BROWN ANODIZED |
| SINTESI 2000 | 40316F | Chain actuator Sintesi 2000 W - WHITE PAINTED RAL 9010 |
